Arrowlock 88 Series Cattle Squeeze Crush

88 Hero UK

The First Manual Cattle Crush with Superior Force and Minimal Operator Effort

Product Code: 8800
Product Features | Product Specifications

Weight: 1258kg kg

Dimensions: 3677mm Long x 1716mm Wide x 2419mm High

7 Options Available

Get my Quote from Arrowquip

Get ready for a breakthrough in the cattle handling industry. From the company that brought the trusted Q-Catch lineup comes the ALL-NEW Arrowlock 88 Series cattle squeeze crush – The world’s first manual crush with strength and hold that stands inline with hydraulic squeeze crushs.

Introducing the never-before-seen Arrowlock Yoke gate with three adjustable settings for maximum hold from the smallest calves to the biggest bulls. You’re guaranteed a secure cattle working environment every single time. Combined with limitless access, an infinite true rubber floor, and three side access hurdles on each side, working your cattle has never been easier or safer.

Backed by the industry’s longest and most extensive 15-year warranty, this is an investment you can be certain on. Your search for efficient, easy to use cattle equipment stops here with the Arrowlock 88 Series squeeze crush. The new era of cattle handling is here.

Fill out this form to receive your brochure:

Product Features

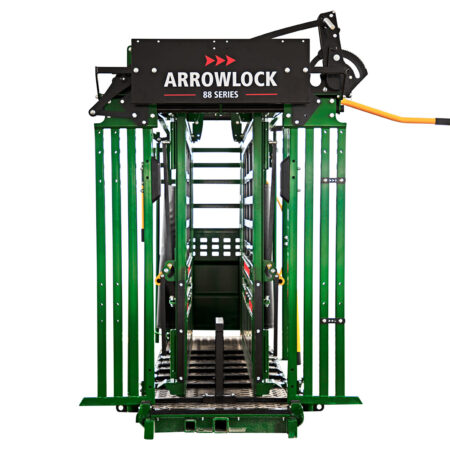

  • Arrowlock 88 squeeze chute partially squeezed

    The Industry’s Strongest Yoke gate Hold

    The Arrowlock Yoke gate features three different settings so you can securely hold any size of livestock from the tiniest calf to the biggest bull.

    With a barred style design that works with cattle’s natural instincts, cattle are drawn into the crush, making your handling experience easy.

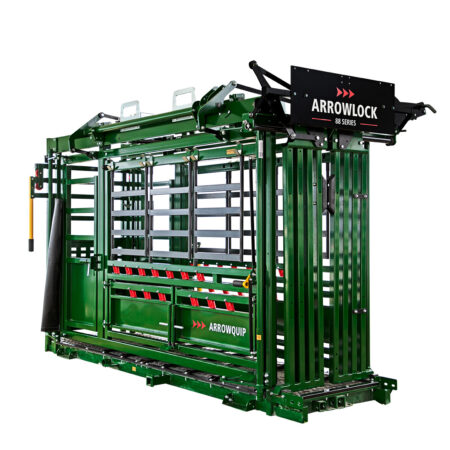

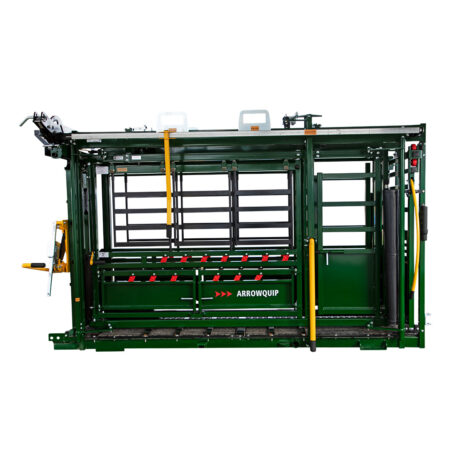

  • Arrowlock 88 squeeze chute side view

    Industry Leading Warranty

    The Arrowlock 88 Series cattle squeeze crush proudly offers the industry’s longest and most extensive 15-year warranty, so you can feel confident in your decision. Features such as the virgin rubber floor, rump fingers, and locking mechanisms come with lifetime warranty to give you peace of mind, so you never have to worry again.

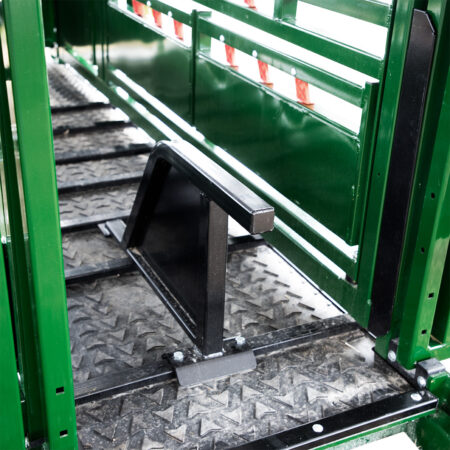

  • Sternum bar and rubber floor in arrowlock 88 squeeze chute

    True Rubber Infinite Cattle Crush Floor

    Compared to other choices on the market, our rubber cattle crush floors are crafted with true virgin rubber to ensure it lasts against your cattle. The new unique floor design is infinite to make exiting the crush easier for your cattle and cleaning the floor easier for you.

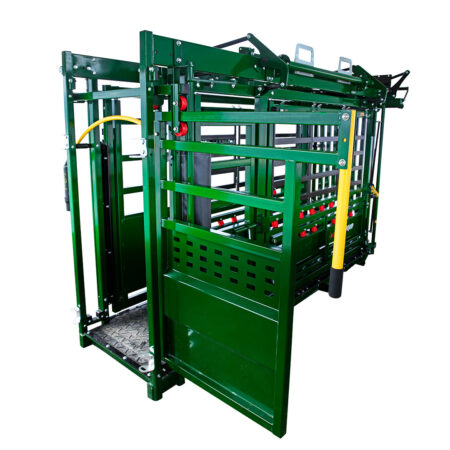

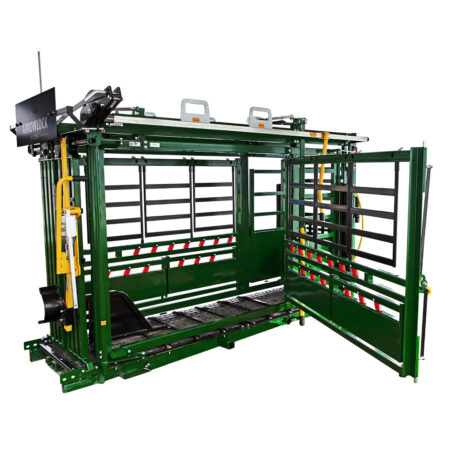

  • Arrowlock 88 squeeze chute with emergency side door open

    Unlimited Access to Your Cattle

    This cattle crush gives you unlimited access to your cattle with 3 drop-down hurdles on either side, split bottom access gates, and emergency exit doors on both sides. When working cattle of different sizes and temperaments, complete access is essential to ensure you can process cattle faster than ever before.

See what Others Have to Say
Want more information?

Contact Arrowquip

Product Specifications

  • 15-year industry leading warranty
  • NEW lock and cog design with different settings for different sized livestock
  • Yoke gate handle can be used at any point alongside the crush
  • Curtain-style yoke gate opens to a full 800mm top to bottom
  • Squeeze crush ranges from 800mm fully open to 196mm fully closed
  • Two rows of rump fingers to ensure safety no matter the size of the animal

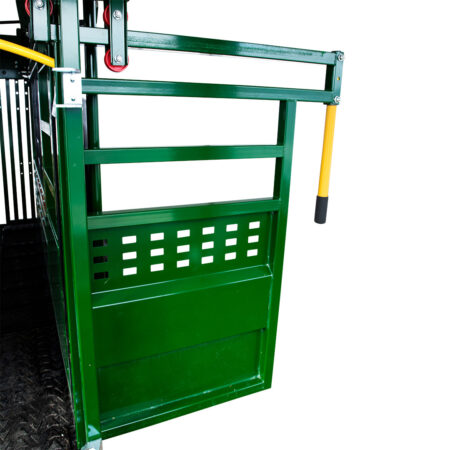

  • Ambidextrous rolling door that can be operated from either side of the crush
  • Vet door opens a full 180° in both directions for full maneuverability
  • 6 Removeable side access hurdles that can be configured multiple ways to suit your operation
  • Removeable split bottom access gates
  • Full swing-out emergency exit
  • Standard Traction Bars
  • 165mm opening at the front of the crush for needle access
  • True virgin rubber infinite floor dampens sound and provides excellent traction
  • Mount brackets so you can add load bars or secure the crush to concrete
  • Transport ready with a wheel kit add-on
  • Rectangular bars to limit bruising on cattle

Misplaced your manual? Download another one now

Available Add-Ons / Options

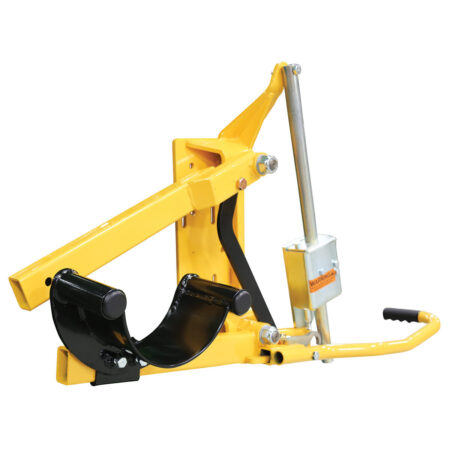

  • Head holder hero

    Fourth-Generation Cattle Head scoop

    The fourth generation of the Cattle Head scoop is stronger and sturdier than ever before. The head scoop easily attaches to your yoke gate and clamps around the cattle’s neck so you can safely treat your cattle up-close. Featuring a patented single lever push-pull operation, this head restraint simplifies any necessary procedures.

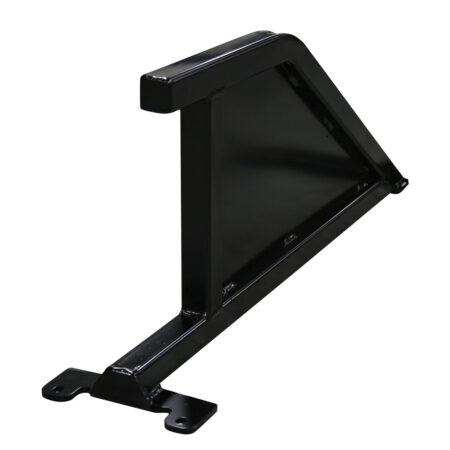

  • Sternum bar option

    Brisket Bar

    The Brisket Bar supports the sternum and eliminates space at the bottom of the crush to prevent cattle from laying down. Arrowquip’s brisket bar comes sheeted to reduce hoof traps and can be installed or removed easily with two bolts.

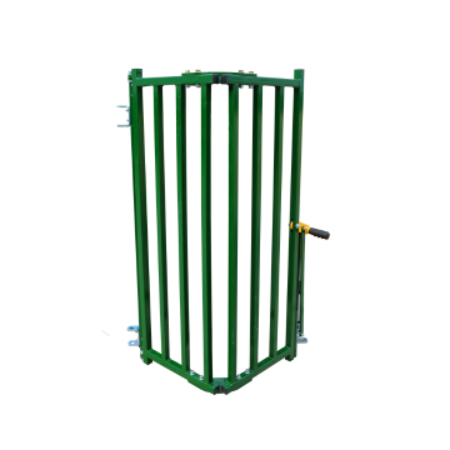

  • Crash Gate 2

    Cattle Crash Gate

    Even if you miss catching your livestock in the yoke gate, you can still be sure they won’t escape with the all-new Arrowquip Crash Gate. This will help create a controlled environment so you can treat your cattle with ease.

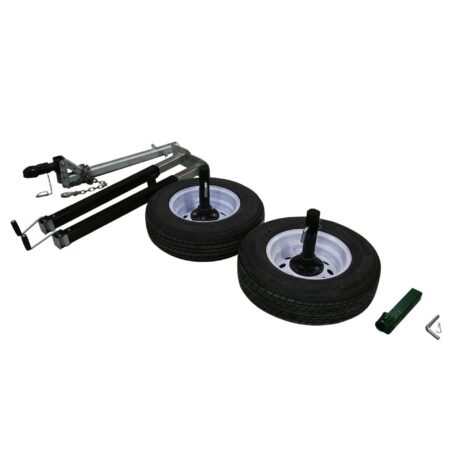

  • Wheel kit option

    Wheel Kit

    Make your crush mobile in no time with a wheel kit. You’ll be hitting the road in no time with a quick and easy installation – because we know how precious your time is.

  • Hydraulic Kit

    The Hydraulic Add-on Kit is exclusive to the Arrowlock 88 Series crush. Giving you hydraulic abilities on a manual cattle crush at an affordable price so you can work cattle faster than ever.

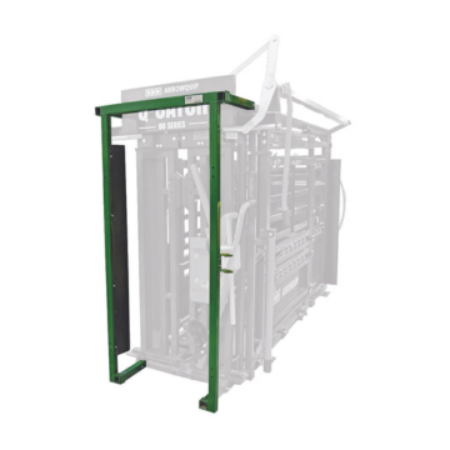

  • Lug Post

    Lug Post Kit

    The Lug Post Kit allows you to connect corral hurdles to your Arrowlock or Powerlock cattle crush. Simply bolt the lug posts onto the yoke gate of your crush, and you will be able to connect hurdles or a Draft Module to create a closed handling system.

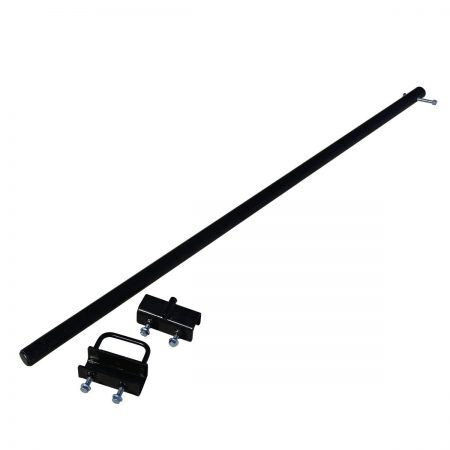

  • Trimming bar option

    Calf Restrainer Bar

    The Calf Restrainer Bar keeps your cattle safely contained when both side doors are opened for hoof trimming. This simple and effective option can be adjusted to accommodate cattle of different sizes, and is installed with just four bolts.
