Arrowlock 75 Series Mobile Squeeze Crush & Race
On-The-Go Mobile Cattle Handling Made Easy
Product Code: 758
Product Features | Product Specifications
Fill out this form to receive your brochure:
[ To get a closer look, click on image below ]
Product Features
![Arrowlock 75 squeeze chute with palpation cage]()

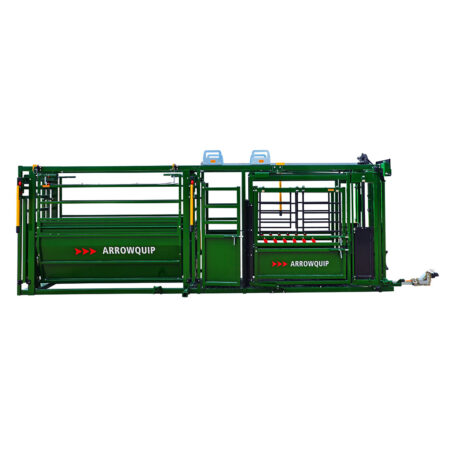

Arrowlock 75 Series Squeeze Crush
With the Arrowlock 75 Series cattle crush, you’ll be able to use it, even if you’re by yourself. With multiple access points to easily reach cattle, and a tooth and pawl lock on the Yoke gate for a guaranteed hold every time, you can say goodbye to headaches and hello to hassle free handling
![Side view of Easy Flow Cattle Race by Arrowquip]()

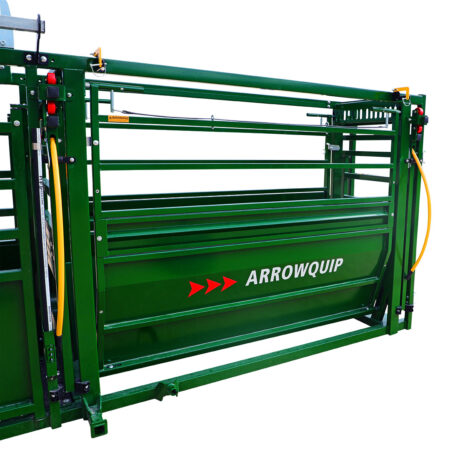

Easy Flow Cattle Race
Need to treat cattle that are away from home? That is no longer a problem with the Arrowlock 75 Series Squeeze Crush and Race. Made with durable materials, this mobile unit will handle even the bumpiest roads.
Featuring an adjustable hitch and easily installed wheels, you can move from one location to the next with ease.

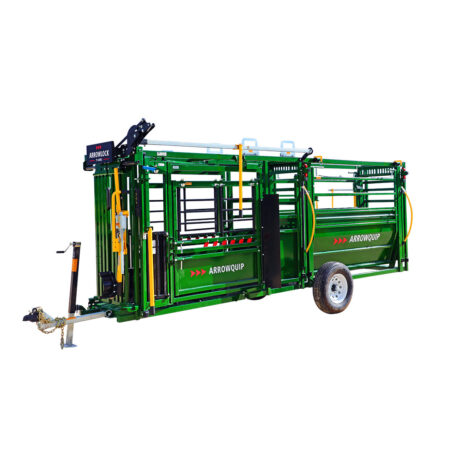

![Arrowlock 75 chute and alley ready to be transported]()

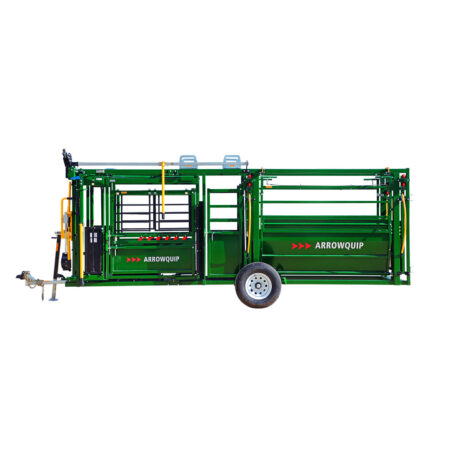

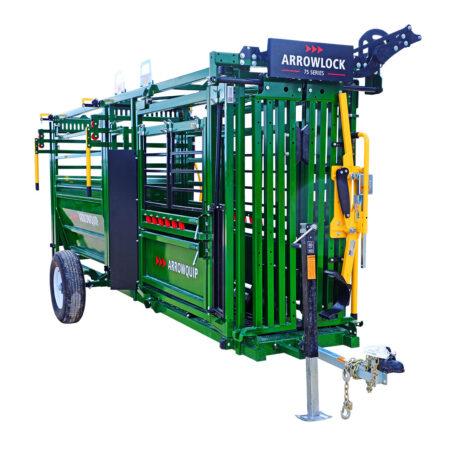

Effortless Cattle Handling on the Move
Need to treat cattle that are away from home? That is no longer a problem with the Arrowlock 75 Series Squeeze Crush and Race. Made with durable materials, this mobile unit will handle even the bumpiest roads.
Featuring an adjustable hitch and easily installed wheels, you can move from one location to the next with ease.

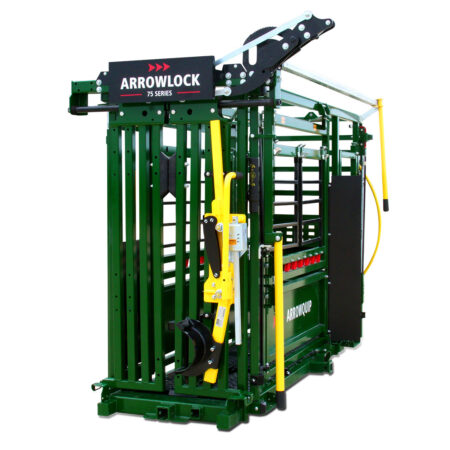

![Arrowlock 75 squeeze chute with palpation cage]()
Access Your Cattle at Any Point
The Arrowlock 75 Series Cattle Crush and Race gives you access from front to back. With two access hurdles on either side of the crush, drop down needle access, and a full emergency access door, you can treat and handle cattle safely.
With a palpation cage, you can have even more access to the back of the animal without compromising your safety.
See what Others Have to Say
Want more information?
Product Specifications
- 3E Head and Tailgate design uses light to draw cattle into the crush
- All-new Arrowlock Yoke gate for a more secure hold
- Arrowlock Yoke gate handle can be used at any point along the side of the crush
- Curtain-style Yoke gate opens parallel to a full 749mm
- Squeeze crush ranges from 800mm fully open to 193mm fully closed
- Singular row of Rump Fingers engineered to endure high pressure

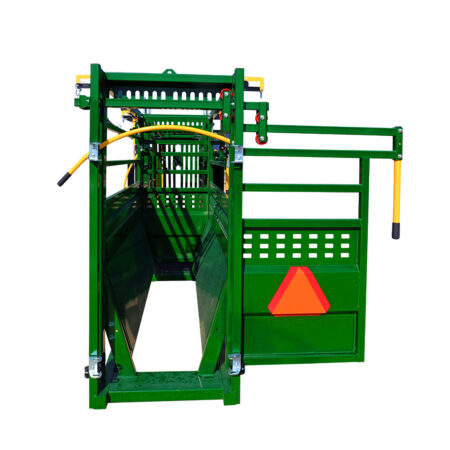

- Ambidextrous 3E Rolling Door that can be used from either side of the crush
- Rolling Door track is top-mounted to eliminate build-up
- Vet Door opens a full 180° for complete maneuverability
- Swing-out access doors allow for complete access to the animal
- Four side access hurdles can be removed or rearranged to suit your needs
- 323mm top to bottom needle access
- Rectangular forcing penning to limit bruising on cattle
- True virgin rubber floor to dampen sound and provide traction
- Cradle-shape Easy Flow Race ranges from 800mm to 533mm
- Removable hurdles on the Easy Flow Race allow you to control what cattle see
- Both side hurdles drop down on the race so you can access the animal in case of emergency
Available Models
Available Add-Ons / Options
![Head holder hero]()

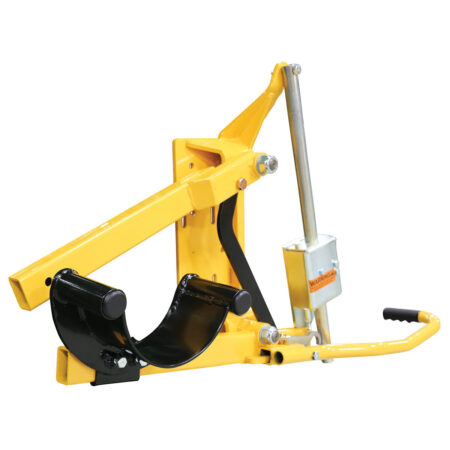

Fourth-Generation Cattle Head Scoop
The fourth generation of the Cattle Head scoop is stronger and sturdier than ever before. The head scoop easily attaches to your yoke gate and clamps around the cattle’s neck so you can safely treat your cattle up-close. Featuring a patented single lever push-pull operation, this head restraint simplifies any necessary procedures.
![Sternum bar option]()

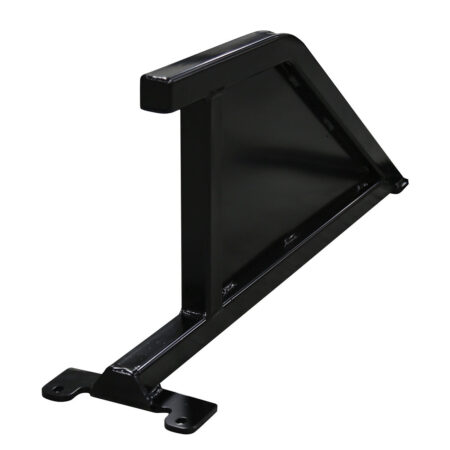

Brisket Bar
The Brisket bar supports the sternum and eliminates space at the bottom of the crush to prevent cattle from laying down. Arrowquip’s brisket bar comes sheeted to reduce hoof traps and can be installed or removed easily with two bolts.

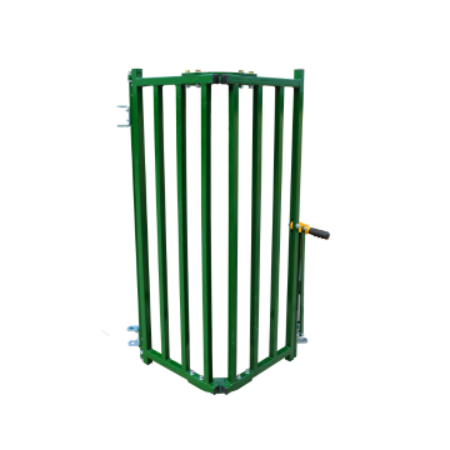

![Crash Gate 2]()
Cattle Crash Gate
Even if you miss catching your livestock in the yoke gate, you can still be sure they won’t escape with the all-new Arrowquip Crash Gate. This will help create a controlled environment so you can treat your cattle with ease.
![Lug Post]()
Lug Post Kit
The Lug Post Kit allows you to connect corral hurdles to your Arrowlock or Powerlock cattle crush. Simply bolt the lug posts onto the yoke gate of your crush, and you will be able to connect hurdles or a Draft Module to create a closed handling system.
![Trimming bar option]()

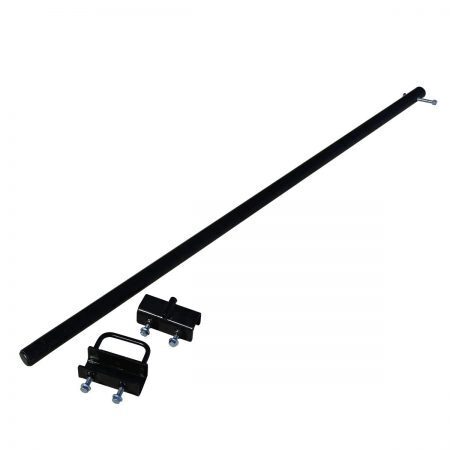

Calf Restrainer Bar
The Calf Restrainer Bar keeps your cattle safely contained when both side doors are opened for hoof trimming. This simple and effective option can be adjusted to accommodate cattle of different sizes, and is installed with just four bolts.
Weigh Platform Kit
The Easy Flow Race Weigh Platform Kit can be added to an 8' Easy Flow Race section to provide fast, accurate weigh-ins with the addition of load bars. Race side hurdles can be lifted and held in place with the slam latches, allowing the operator to slide the platform underneath for easy installation. Features heavy-duty, 6.35mm aluminum plate that provides excellent traction for hooves.
Scale Mount Plates
Scale Mount Plates can pair with the Easy Flow Race Weigh Platform Kit. Designed to support 58mm raceway load bars. Options for Gallagher or Tru-Test load bars are available.
