Arrowlock 75 Series Squeeze Crush

75 Hero

A Manual Crush Designed to Simplify Your Cattle Handling Operation

Product Code: 7500
Product Features | Product Specifications

Weight: 934kg kg

Dimensions: 3370mm (L) x 1599mm (W) x 2515mm (H)

6 Options Available

Get my Quote from Arrowquip

Introducing the Arrowlock 75 Series squeeze crush: Your ultimate cattle crush designed to get the job done right every time – because we know your time is valuable.

Efficiency and safety come together in the all-new Arrowlock 75 Series to make cattle handling and management easy on you and your livestock. With an all-new lock and cog style yoke gate, you get the strongest hold in a manual crush with additional features, such as, a true rubber floor, multiple access points, and easy to use operating handles for a true one-person operation. Every inch of the Arrowlock 75 Series squeeze crush reflects Arrowquip’s dedication to excellence. Backed by an exclusive 10-year warranty, you can be certain your equipment will withstand the elements (and your cattle!).

Get ready to elevate efficiency on your cattle operation today, tomorrow, and for years to come with the Arrowlock 75 Series.

Fill out this form to receive your brochure:

Product Features

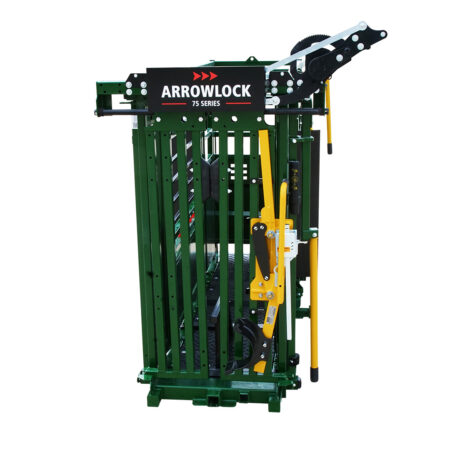

  • Arrowlock 75 manual squeeze chute with head holder

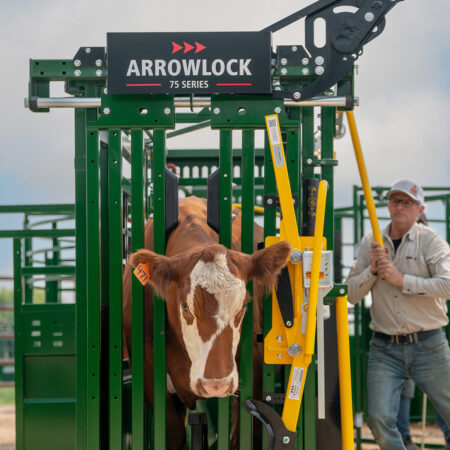

    3E Arrowlock Cattle Head Gate

    Designed with cattle behavior in mind, the 3E Cattle Head Gate prompts cattle to enter the squeeze chute without a fight. Even when the head gate is closed, the barred design allows cattle to see light, drawing them in. This results in a smoother, more hands-off cattle handling experience.

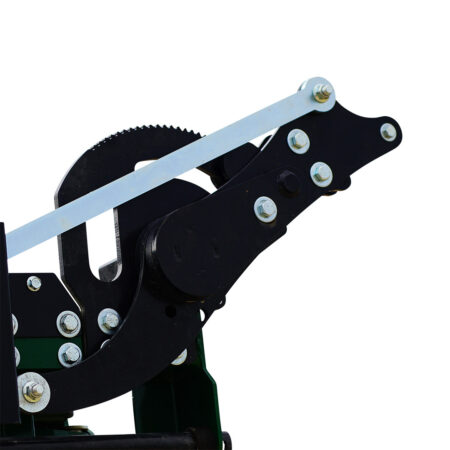

    With the tooth and pawl lock, you can have a strong hold on your cattle, eliminating the chance of them slipping out.

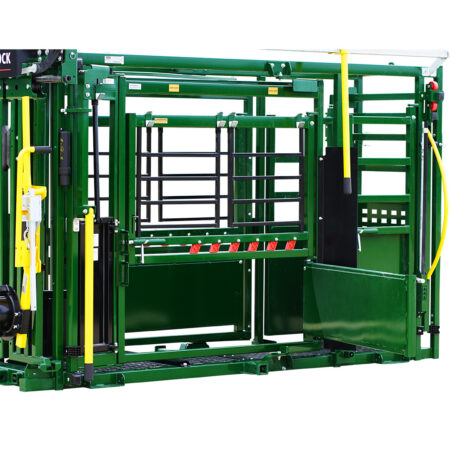

  • Arrowlock 75 squeeze chute with bottom access door open

    Unmatched Squeeze Chute Access

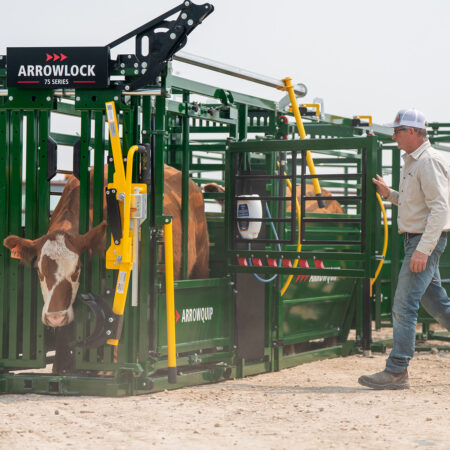

    The Arrowlock 75 Series allows you to access your cattle through a series of access points. With top and bottom swing-out gates for full side access, a drop-down needle door, and side access panels, you can treat or brand your cattle with ease. The 75 Series Deluxe Model features a full-size vet cage with optimal head clearance so your animals can be accessible from all angles.

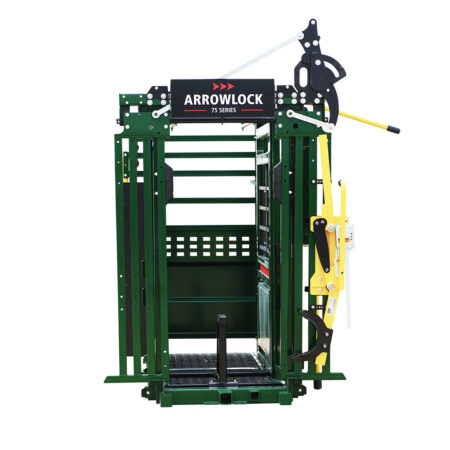

  • Arrowlock 75 squeeze chute with head gate open

    True Virgin Rubber Cattle Chute Floor

    Unlike other options on the market, our rubber floor is made from TRUE rubber to dampen noise for a smooth and quiet cattle handling experience. The special design on our floors provide great traction for hooves to help cattle feel secure and confident to walk through the chute seamlessly.

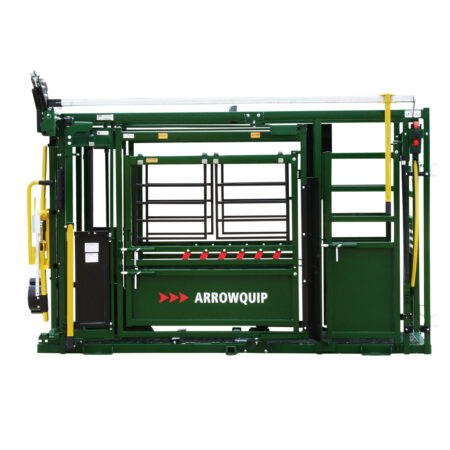

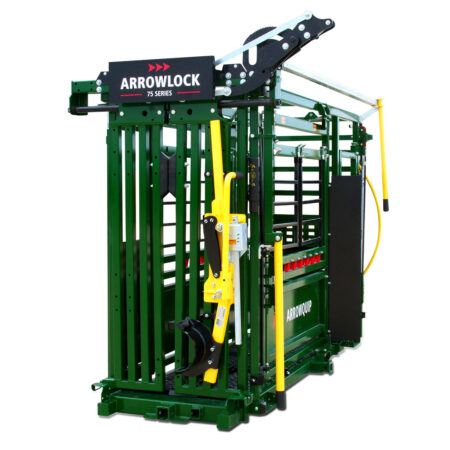

  • Arrowlock 75 squeeze chute with palpation cage side view

    Unbeatable 10-Year Warranty

    We hold our equipment to a high standard, and strongly believe in the quality. That is why we’ve backed our 75 Series squeeze chute with industry-leading warranty. Our 10-year warranty means we have your back no matter what, to keep your cattle operation running safer, easier, and faster than ever before. Additionally, all locking mechanisms, the rubber floor, and rump fingers are backed by a lifetime guarantee.

See what Others Have to Say
Want more information?

Contact Arrowquip

Product Specifications

  • 10-year warranty
  • Arrowlock yoke gate for a secure hold
  • Unique barred yoke gate design uses light to draw cattle in
  • Curtain-style yoke gate opens parallel to a full 749mm
  • Easy to use push-pull squeeze lever

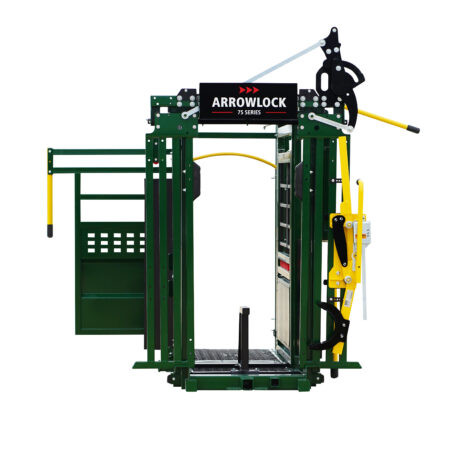

  • Squeeze on the cattle crush ranges from 800mm fully open to 196mm fully closed
  • Rump fingers ensure additional safety no matter the size of the animal
  • Ambidextrous rolling door so you can control the flow of cattle
  • Vet door opens in both directions for a full 180° of manoeuvrability (Deluxe Vet only)
  • Swing-out top and bottom access doors can be used individually or together as an emergency exit
  • Removable side access doors that can be configured in a variety of positions

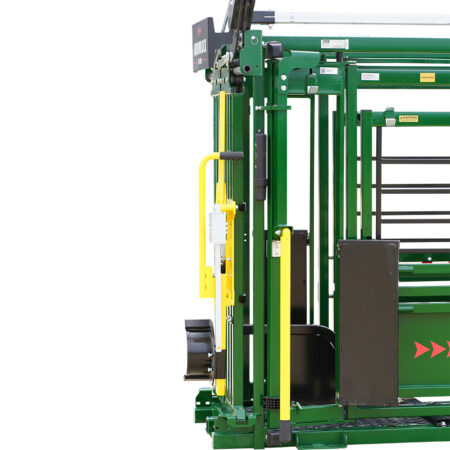

  • Top to bottom needle access for quick injections
  • Pivot and latch points feature poly bushings for a silent operation
  • True rubber floor for added traction and a quieter operation
  • Mount brackets included so you can add load bars or secure the crush to concrete
  • Rectangular forcing penning to limit cattle bruising

Misplaced your manual? Download another one now

Available Add-Ons / Options

  • Fourth-Generation Cattle Head scoop

    The fourth generation of the Cattle Head scoop is stronger and sturdier than ever before. The head scoop easily attaches to your yoke gate and clamps around the cattle’s neck so you can safely treat your cattle up-close. Featuring a patented single lever push-pull operation, this head restraint simplifies any necessary procedures.

  • Brisket Bar

    The Brisket bar supports the sternum and eliminates space at the bottom of the crush to prevent cattle from laying down. Arrowquip’s brisket bar comes sheeted to reduce hoof traps and can be installed or removed easily with two bolts.

  • Calf Restrainer Bar

    The Calf Restrainer Bar keeps your cattle safely contained when both side doors are opened for hoof trimming. This simple and effective option can be adjusted to accommodate cattle of different sizes, and is installed with just four bolts.

  • Cattle Crash Gate

    Even if you miss catching your livestock in the yoke gate, you can still be sure they won’t escape with the all-new Arrowquip Crash Gate. This will help create a controlled environment so you can treat your cattle with ease.

  • Wheel Kit

    Make your crush mobile in no time with a wheel kit. You’ll be hitting the road in no time with a quick and easy installation – because we know how precious your time is.

  • Lug Post Kit

    The Lug Post Kit allows you to connect corral hurdles to your Arrowlock or Powerlock cattle crush. Simply bolt the lug posts onto the yoke gate of your crush, and you will be able to connect hurdles or a Draft Module to create a closed handling system.
