Q-Catch 87 Series Mobile Cattle Crush, Race and Forcing Pen

8178 8708 hero uk warranty

Mobile Cattle Crush, Race and Forcing Pen you can take anywhere

Product Code: 8718
Product Features | Product Specifications

4 models available:
3E BudFlow® [18' Race]| Forcing Pen [18' Race]| 3E BudFlow® [8' Race]| Forcing Pen [8' Race]

6 Options Available

Get my Quote from Arrowquip

* Head Scoop Optional

Read Full Video Transcript

The NEW Q-Catch 87 Series Mobile Cattle Crush, Race and Forcing Pen features Arrowquip's signature cattle handling components in a compact and convenient mobile unit. Available in multiple options, the new line-up of Q-Catch 87 Series portable cattle handling equipment provides farmers with the flexibility to get the job done, no matter where it needs to happen.

Taking mobile cattle handling to the next level, Arrowquip has introduced a new option, their very first FULL mobile system. This new model features an 18' race to improve the way cattle flow through the system. Combining these two cradle-shaped Easy Flow Race sections with the low-sheeted pen and Q-Catch 87 Series cattle crush that feature our patent-pending 3E components will ensure cattle will flow through your system with ease.

Fill out this form to receive your Q-Catch 87 Series Mobile Cattle Crush, Race and Forcing Pen brochure:

Government TB Testing Regulations

As per the Government of UK website’s tuberculosis testing guidelines, your testing and handling facilities must:

Allow safe movement of cattle;
Include a suitable handling system (such as a crush and penning system linked by a secure race);
Make it easy for inspectors to restrain and examine cattle, clip their hair, measure the skin with calipers, and give them injections;
Be in good working order;
Be suitable for the size and breed of cattle that have to be tested; and
Be well-lit so inspectors can read ear tags and carry out the test.

Product Features

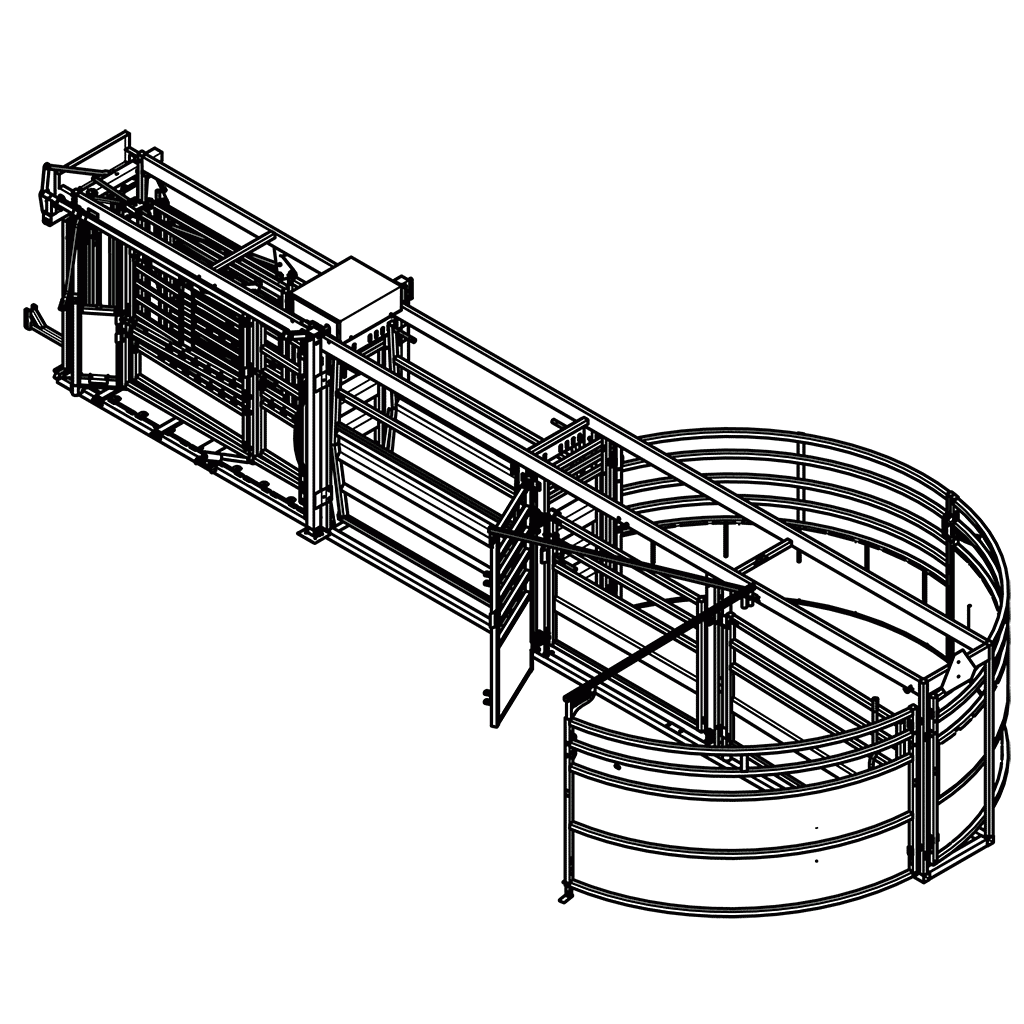

  • Looking at the top of the Mobile Cattle Crush, Race and Forcing Pen with 18 feet of cattle races

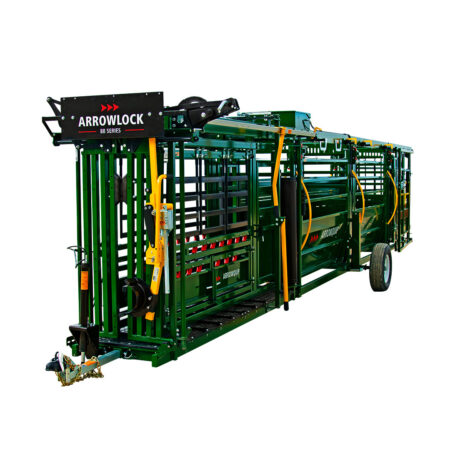

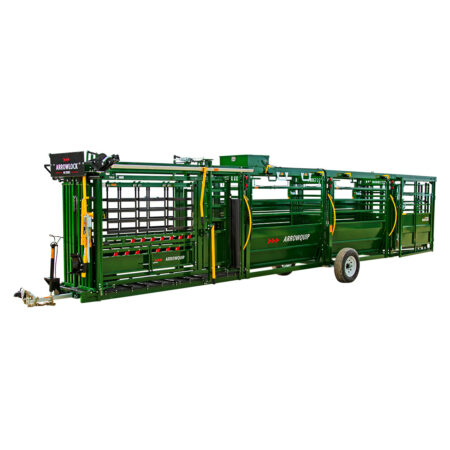

    Engineered For Transport

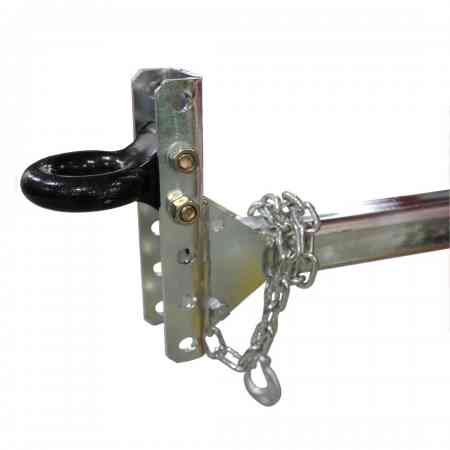

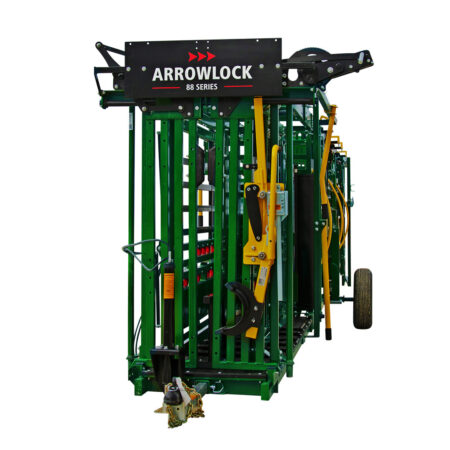

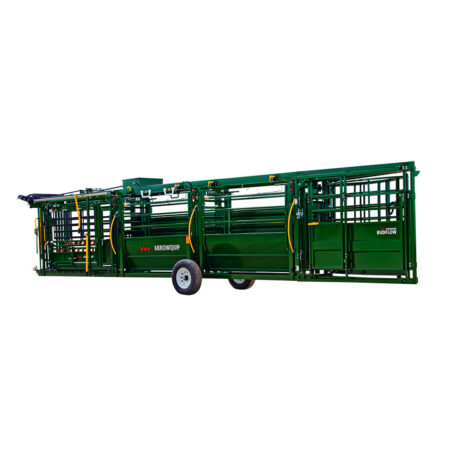

    Towing is one of the biggest differences in the new mobile cattle handling system. The entire unit folds up into a compact and secure package for travel, ensuring your equipment will get to your destination safely. The enhanced frame features 51mm x 153mm beams on the top, and 76mm x 76mm beams on the bottom for structural integrity, and setup when you get to your location only takes a matter of minutes with our NEW fully Hydraulic Jack system.

    The collapsible forcing pen on all Arrowquip mobile cattle handling units has been completely redesigned to be truly compact. The pen is folded in a way that shortens the unit by up to 1727mm when towing. This brilliant engineering has made the NEW 18' race unit the same length as the previous Q-Catch 86 Series Portable Cattle Crush, 8' Race & Forcing Pen model was!

  • Needle door drop down bar for TB testing

    Designed for TB Testing

    The Q-Catch 87 Series mobile cattle crush, race and forcing pen is an ideal solution for TB testing, as it offers ideal access to the neck of the animal. The 324mm TB access area right at the front of the crush allows your testing personnel and vets to easily access the neck of your cattle to complete SICCT testing. This access is available on both sides of the crush, ensuring that you can complete testing quickly and effectively. An added bonus with the Q-Catch is that it is a low-stress environment for your livestock, so handling them regularly will not cause unnecessary stress.

    For more information, visit our TB Testing page.

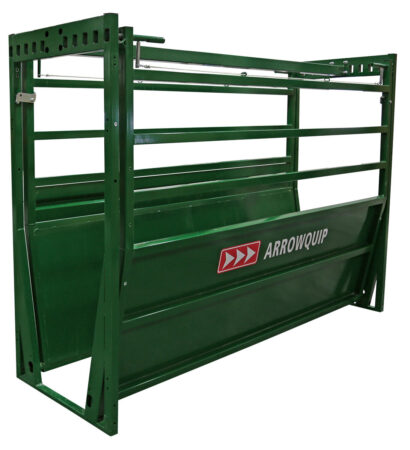

  • Easy Flow adjustable cattle race side image with two blinders on one side opposite side

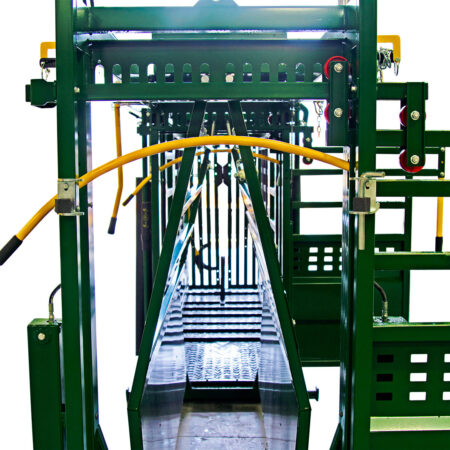

    NEW 18' Easy Flow Alley

    The NEW 18' Race section turns your mobile cattle crush, race and forcing pen into a fully portable handling system. By providing enough space for you to move all cattle out of the pen and into the race, it provides the capacity you need to move your cattle though the system without having to stop and start the flow of cattle repeatedly.

    The Easy Flow Cattle Race sections are equipped with our patent-pending 3E technology which helps to draw cattle in the right direction using light. Two removable panels on each race section can be moved into multiple positions to control what cattle see, giving you enhanced control of cattle movement.

    Also available in an 8' race model.

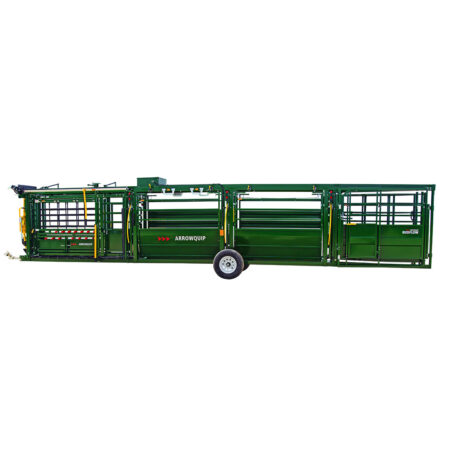

  • Q-Catch 87 Series cattle crush side view

    Q-Catch 87 Series Cattle Crush

    You'll have maximum control, safety, and efficiency even when you'e working cattle alone with the NEW Q-Catch 87 Series at the front of the system. The world's quietest manual cattle crush is at your fingertips, so you're guaranteed a quiet cattle handling experience anytime, anywhere.

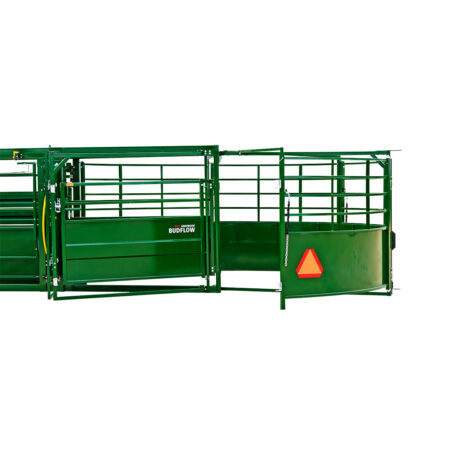

3E BudFlow® vs Forcing Pen

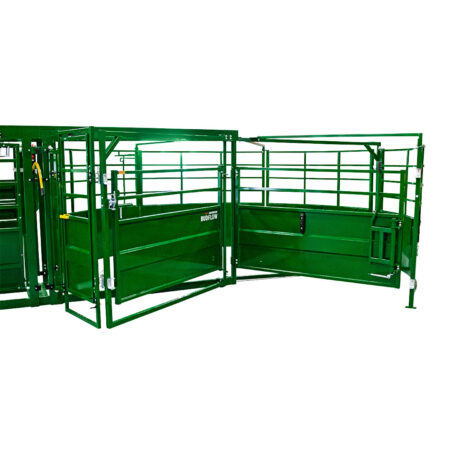

The new 3E BudFlow® system allows cattle to see more light, which enhances flow through your handling system. The 3E BudFlow forcing pen is designed to work with natural cattle behaviour by providing them with extra space to prevent stops and encourage cattle to move into the race seamlessly.

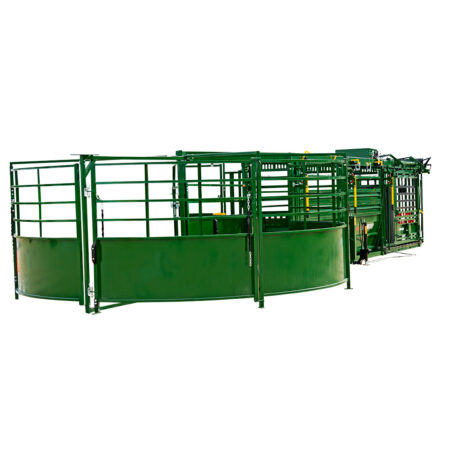

The 180° Forcing Pen provides effective cattle movement from the pen into the race. The sweep gate features a lock out to keep it from moving back towards the farmer when forcing cattle into the race.

More Information on Cattle Forcing Pens

For more information, visit our TB Testing page.

Hydraulic Jacks

Hydraulic jack in front of mobile system

The Q-Catch 87 Series portable cattle crush, race, and forcing pen is now available with hydraulic jacks. Our Innovations Team has worked diligently to introduce these jacks based on market feedback from consumers looking for an easier to use jack option.

The jacking system now features a 165 AMP Power Unit, 12V battery with 200 AMP breaker to protect the power unit, and military grade 12W Solar Panel that keeps the battery in optimum condition with constant pulse technology. Both the main jack and front hitch jack are powered by the hydraulic jacks, and the selector valve allows the operator to control which jack is being raised or lowered. The unit is easily charged with the terminals on the side of the power unit, and includes a custom designed hydraulic manifold for accurate flow division and load hold.

SPECS:
- Lift and lower the unit easily with a fully 165 AMP hydraulic jacking system
- Main jack and front hitch jack are both hydraulically powered for faster setup and tear-down
- 12-watt military grade solar panel uses pulse technology to keep the battery in optimum condition
- Powered by a 12V Battery with 200-amp breaker to protect the motor
- Terminals located on the outside of the box for easy charging and jumping
- Control pendant manages both jacks from a single point with a selector valve to switch between jacks
- Control pendant is magnetic and can be attached to the chute easily
- Jacks are contained in a sheet metal jack box which is powder-coated for longevity and durability
- Fully enclosed jack box features a hinged lid, latch, and optional lock for security purposes

See what Others Have to Say
Want more information?

Contact Arrowquip

Product Specifications

  • 7-Year Cattle Crush Warranty, best in the industry
  • New yoke gate design uses light to draw cattle into the crush
  • Q-Catch yoke gate operation handle can be situated anywhere along the side of the crush
  • Curtain-style yoke gate opens to a full 762mm top to bottom for cattle to exit the crush

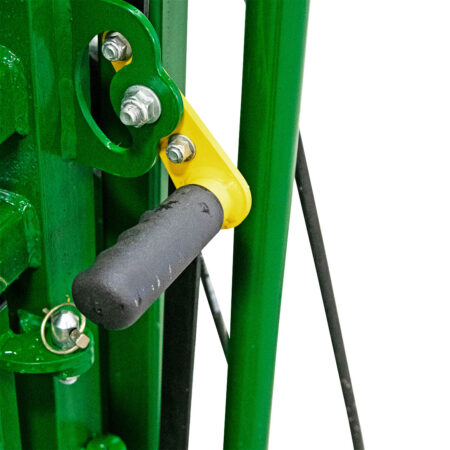

  • Easy to use push-pull squeeze handle
  • Squeeze ranges from 750mm fully open to 197mm fully closed
  • The Q-Catch squeeze locking system features a dual friction lock with infinite adjustments
  • New Direct Drive system provides faster yoke gate response
  • Poly-coated slam latches eliminate metal clanging
  • Two rows of rump fingers ensure safety no matter the size of the animal
  • Poly-composite rump fingers are engineered to endure high pressure
  • Ambidextrous rolling rear gate that can be operated from either side of the crush and is reversible
  • The rolling rear gate running track is top-mounted, eliminating the issue of build-up
  • Vet door opens in both directions for a full 180° of manoeuverability (Deluxe Vet only)
  • Low-profile latch ensures the vet cage door will not swing to the inside of the crush when slammed shut (Deluxe Vet only)
  • Swing-out top and bottom access doors can be used individually or together to access the entire animal
  • Side access panels are removable and can be configured in a variety of positions to suit your farms needs
  • 324mm top to bottom needle door access
  • New drop-down needle bar allows for quick injections
  • Rectangular tubing limits cattle bruising
  • Pivot and latch points feature poly bushings for silent operation
  • True virgin rubber flooring dampens sound and provides great traction
  • Rubber floor is backed by a lifetime guarantee
  • Mount brackets enable you to add load bars or secure the crush to concrete
  • Yoke Gate locking pin adds safety when transporting the cattle crush, or completing maintenance
  • Both sides of the Easy Flow Cattle Race can be adjusted from one side
  • Cradle-shaped Easy Flow Race section ranges from 750mm to 457mm in width
  • Both side panels drop down fully, allowing the farmer to access the animal in case of emergency
  • Safety latches on the Easy Flow Race side panels add security and control when adjusting, and ensure the sides will not drop accidentally
  • Easy Flow Races come with removable panels so you can control what cattle see in the race
  • Single piece steel frame has been reinforced with new 51mm x 153mm beams that run the length of the unit
  • The forcing pen folds in on itself so that it is compact for transport
  • Forcing pen measures just 1176mm wide when panels are folded in

Misplaced your manual? Download another one now

Available Models

  • Model: 3E BudFlow® [18' Race]

    Weight: 2707-2737 kg

    Dimensions: 4572mm Wide x 2347mm High x 13292mm Long (When set up.)

    Towing Dimensions: 1760mm Wide x 2736 High x 11811mm Long (With wheels and hitch.)

  • Model: Forcing Pen [18' Race]

    Weight: 2542-2572 kg

    Dimensions: 3556mm Wide x 2347mm High x 13292mm Long (When set up.)

    Towing Dimensions: 1760mm Wide x 2736 High x 11811mm Long (With wheels and hitch.)

  • Model: 3E BudFlow® [8' Race]

    Weight: 2273-2303 kg

    Dimensions: 4572mm Wide x 2347mm High x 10650mm Long (When set up.)

    Towing Dimensions: 1760mm Wide x 2736 High x 9169mm Long (With wheels and hitch.)

  • Model: Forcing Pen [8' Race]

    Weight: 2109-2139 kg

    Dimensions: 3556mm Wide x 2347mm High x 10650mm Long (When set up.)

    Towing Dimensions: 1760mm Wide x 2736 High x 9169mm Long (With wheels and hitch.)

Available Add-Ons / Options

  • Yellow cattle head scoop in closed position

    Third-Generation Cattle Head Scoop [Patented]

    If you need reliable cattle head control, look no further than the 3rd Gen Q-Catch Head Scoop. This model is heavier, stronger, and more durable than its predecessor. Featuring a patented single handle push-pull operation, the cattle head scoop simplifies any procedure. The head scoop clamps around the cattle's neck to hold the head immobile and allow the farmer safe, up-close access.

    [ More Information on the Third-Generation Cattle Head Scoop [Patented] ]
  • Brisket Bar

    Brisket Bar

    The Brisket Bar supports cattle to keep them standing during stressful procedures. It eliminates space at the bottom of the crush, and comes sheeted to eliminate hoof traps. For ease of use, the Brisket Bar can be installed with only two bolts.

  • Clipping rail for Arrowquip cattle crushes

    Clipping Rail

    The clipping rail is a simple and effective option to keep cattle contained when both side doors are in use. It can be adjusted to accommodate cattle of any size, and is easily installed or removed from the crush with just 4 bolts.

  • cattle weighing scale platform

    Scale Platform

    The Scale Platform has been specially designed for the 8' Adjustable Easy Flow Race section of the mobile cattle crush, race and forcing pen. To make installation easy, the side panels can be lifted and held in place with the slam latches, allowing the operator to slide the Scale Platform underneath. These heavy-duty, 6.35mm aluminium plates feature raised sides ensure cattle will not slip off, and allow you to quickly and effectively weigh your cattle.

  • weighing scale mount plates by Arrowquip

    Scale Mount Plates

    Scale Mount Plates designed to support 23" load bars when using the Arrowquip Scale Platform. Designed to work with Gallagher and Tru-Test load bars.

  • Portable manuals jacks

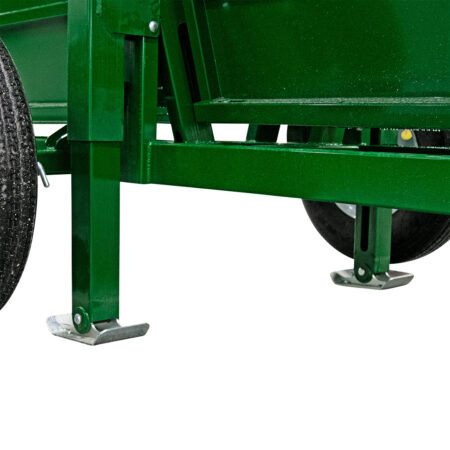

    Manual Jacks

    All Arrowquip mobile cattle crushes and handling systems are available with the option of manual jacks if preferred.
