Q-Power 107 Series Hydraulic Mobile Crush and Race

hydraulic mobile crush in a field with cattle

A Hydraulic Mobile Crush and Race designed for maximum efficiency, everywhere

Weight: 1790 - 1835 kg

Dimensions: 1785mm w x 2670mm h x 5970mm l (When set up.)

Jump to:
Features | Options | Specifications

Product Code: 1078

* Head Scoop Optional

Full Video Transcript

Arrowquip's new hydraulic mobile crush for cattle with 8' race comes with the new Q-Power 107 Series, the premiere hydraulic cattle crush of the era. From the new electric jacks to the superior hydraulics, this system has been designed with cattle flow and ease of use for operators in mind. With the new 3E yoke gate design and Easy Flow Race removable panels, plus everyone's favourite true rubber floor, everything is designed with cattle behaviour in mind to keep your cattle flowing in the right direction.

This portable duo allows you to do it all, and so much more in way less time.

Get My Q-Power 107 Series Hydraulic Mobile Crush and Race Brochure

Government TB Testing Regulations

As per the Government of UK website’s tuberculosis testing guidelines, your testing and handling facilities must:

Allow safe movement of cattle;	✓
Include a suitable handling system (such as a crush and penning system linked by a secure race);	✓
Make it easy for inspectors to restrain and examine cattle, clip their hair, measure the skin with calipers, and give them injections;	✓
Be in good working order;	✓
Be suitable for the size and breed of cattle that have to be tested; and	✓
Be well-lit so inspectors can read ear tags and carry out the test.	✓

Q-Power 107 Series hydraulic cattle crush from the side

Q-Power 107 Series Hydraulic Cattle Crush
The NEW Q-Power 107 Series is at the forefront of this powerful duo. With superior, fast-touch hydraulic response and unparalleled access, this portable hydraulic crush enables you to do your tasks faster, safer, and much easier than ever before.

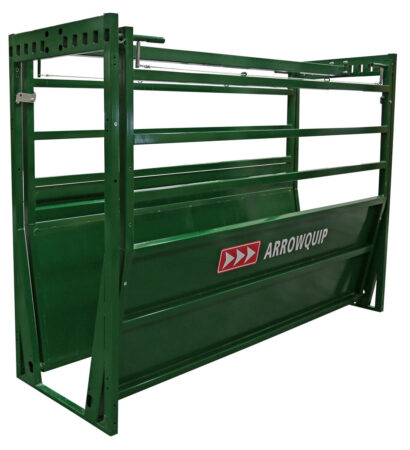

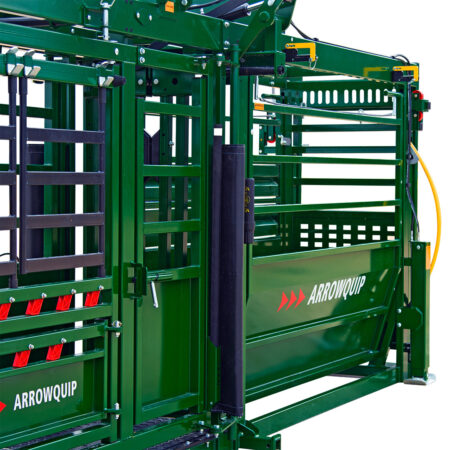

Easy Flow Race

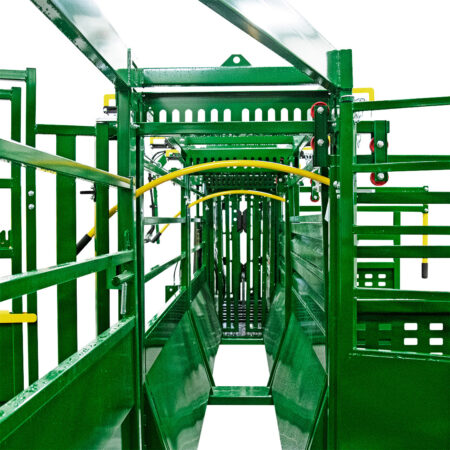

The new and improved Easy Flow Adjustable Cattle Race allows you to control what cattle see with two NEW removable panels that that can be arranged in a variety of ways. The races narrow down towards the centre and are cradle-shaped to ensure that your cattle keep moving forward in a smooth, straight line.

Request My Product Demo

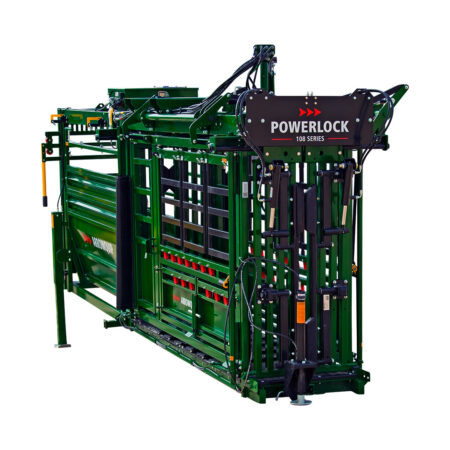

Hydraulic Jacks

Hydraulic jack in front of mobile system

The Q-Power 107 Series portable hydraulic cattle crush and race is now offered with hydraulic jacks. The Innovations Team has worked diligently to introduce these jacks based on market feedback from consumers looking for an easier to use jack option.

The jacking system now features a 165 AMP Power Unit, 12V battery with 200 AMP breaker to protect the power unit, and military grade 12W Solar Panel that keeps the battery in optimum condition with constant pulse technology. Both the main jack and front hitch jack are powered by the hydraulic jacks, and the selector valve allows the operator to control which jack is being raised or lowered. The unit is easily charged with the terminals on the side of the power unit, and includes a custom designed hydraulic manifold for accurate flow division and load hold.

SPECS:
- Lift and lower the unit easily with a fully 165 AMP hydraulic jacking system
- Main jack and front hitch jack are both hydraulically powered for faster setup and tear-down
- 12-watt military grade solar panel uses pulse technology to keep the battery in optimum condition
- Powered by a 12V Battery with 200-amp breaker to protect the motor
- Terminals located on the outside of the box for easy charging and jumping
- Control pendant manages both jacks from a single point with a selector valve to switch between jacks
- Control pendant is magnetic and can be attached to the chute easily
- Jacks are contained in a sheet metal jack box which is powder-coated for longevity and durability
- Fully enclosed jack box features a hinged lid, latch, and optional lock for security purposes

Looking at the top of the hydraulic mobile crush in transport position

New Electric Jacks [PATENT-PENDING]
All it takes is the push of a button to lift your new hydraulic mobile crush and race. The electric jacks feature a 24V system, powered by two maintenance-free 12V Arrowquip AGM batteries connected in series. The new electric jack system can lift and lower the unit in under two minutes. A secondary bulldog jack at the front of the crush simplifies the process of hooking the unit up to your towing vehicle.
Engineered to Move
This hydraulic mobile crush is engineered with portability in mind. The new, enhanced frame boasts 51mm x 153mm beams at the top and 76mm x 76mm beams at the bottom, ensuring the structural integrity of your unit. Additionally, the improved hitch has an added gusset for support, multiple height options, and the wheels are easily installed and removed with two pins.

Request My Price

The Q-Power 107 Series crush for cattle can manage cattle of any size
The side access doors provide excellent access to livestock
Cow exiting the Q-Power hydraulic crush for cattle

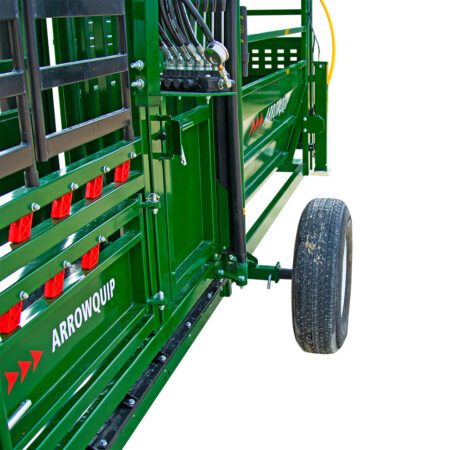

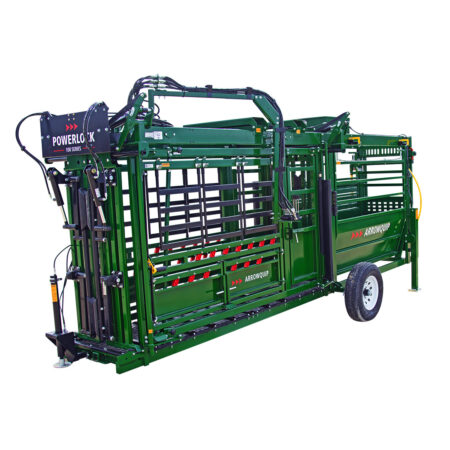

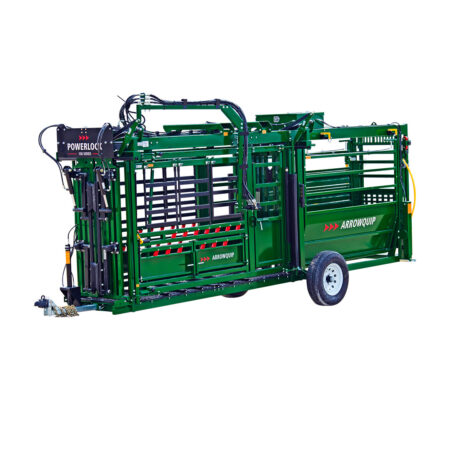

Portable hydraulic mobile crush on wheels ready for towing

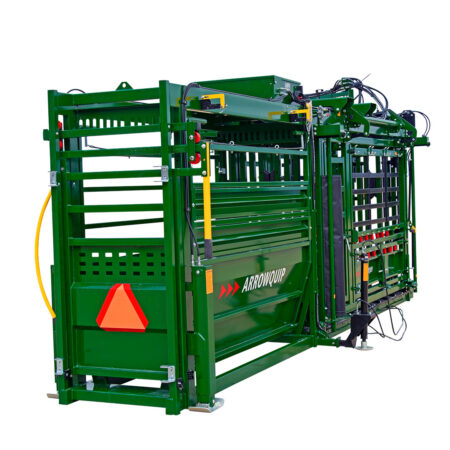

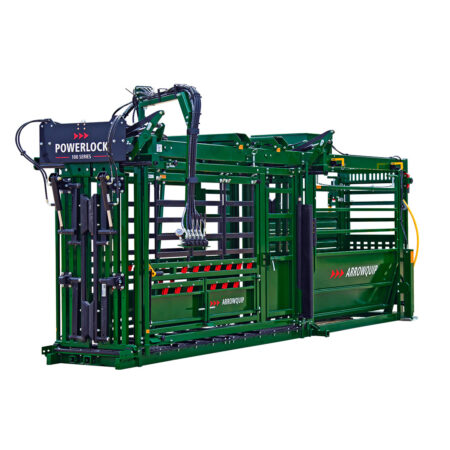

Side view of the mobile hydraulic crush

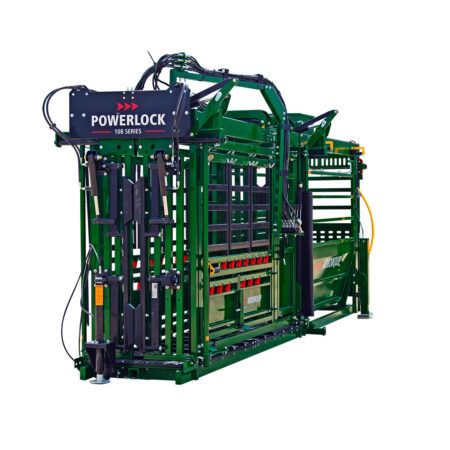

Hydraulic mobile crush ready to work livestock
Pivoting swing arm allows you to work the crush from either side

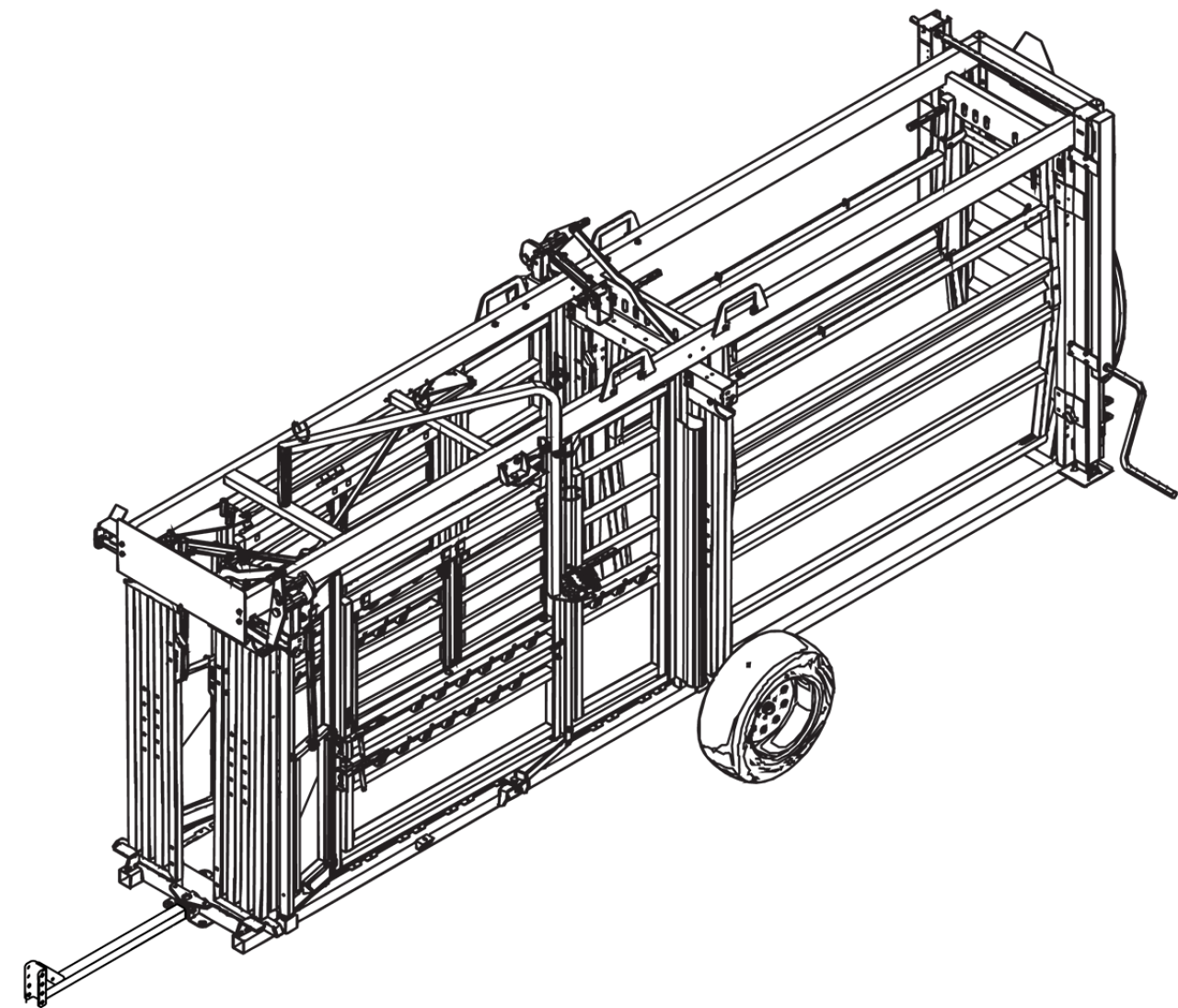

Top view of the hydraulic mobile crush ready for towing
Top view of the hydraulic mobile crush and race
The barred yoke gate lets cattle see light at the end of the unit, so they think there is somewhere to escape
The squeeze goes down to just 51mm

Options

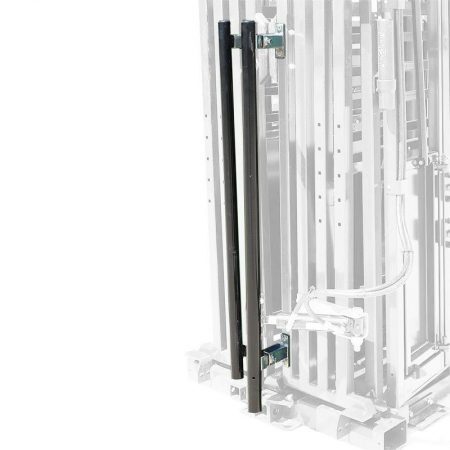

Hydraulic Head Sweep
This simple, gentle, and effective option can be connected to the hydraulics on your cattle crush to hold the animal’s head in place with ease.

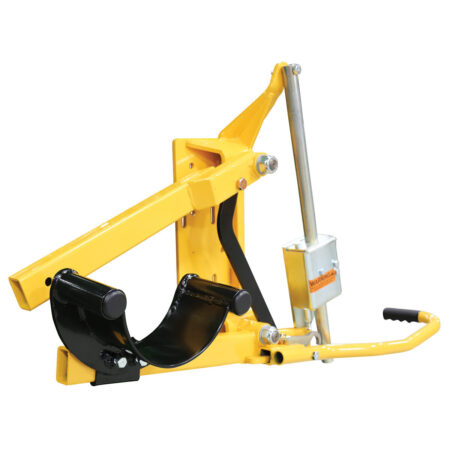

Third-Generation Cattle Head Scoop [Patented]
The third generation of the Q-Catch Head Scoop is heavier, stronger, and more durable than ever before. The cattle head scoop secures the cows head immobile, allowing the farmer safe, up-close access. Featuring a patented single handle push-pull operation, the head scoop simplifies any procedure necessary.
[ More Information on the Third-Generation Cattle Head Scoop [Patented] ]

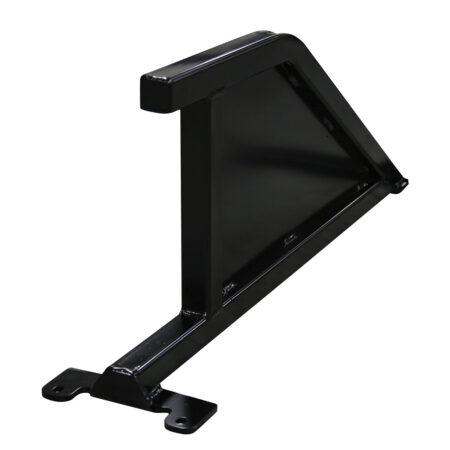

Brisket Bar
The Brisket Bar keeps your cattle upright during stressful procedures by supporting the sternum. The improved Brisket Bar is fully sheeted to eliminate hoof traps and can be installed with only two bolts.
[ More Information on the Brisket Bar ]

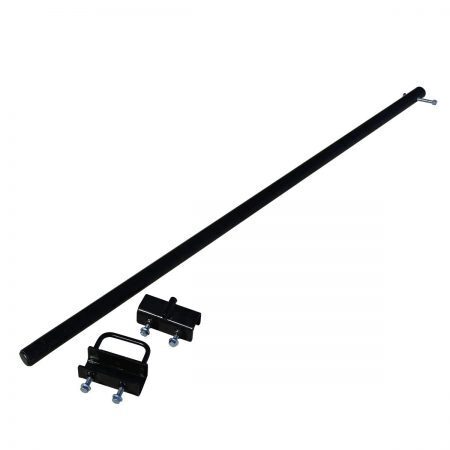

Clipping Rail
The clipping rail keeps cattle contained when it is required that both side doors are opened for hoof trimming. This simple and effective option can be installed or removed from the crush with just 4 bolts, and can be adjusted to accommodate cattle of different sizes.
Scale Platform
The Scale Platform is custom designed for the 8’ Adjustable Easy Flow Race section of the hydraulic mobile cattle crush and race duo. For easy installation, the side panels can be lifted and held in place with the slam latches, allowing the operator to slide the Scale Platform underneath. These heavy-duty, 6.35mm aluminium plates feature raised sides ensure cattle will not slip off, and allow you to quickly and effectively weigh your cattle as they move through the handling system.
Scale Mount Plates
Scale Mount Plates designed to support 23" load bars when using the Arrowquip Scale Platform. Designed to work with Gallagher and Tru-Test load bars.

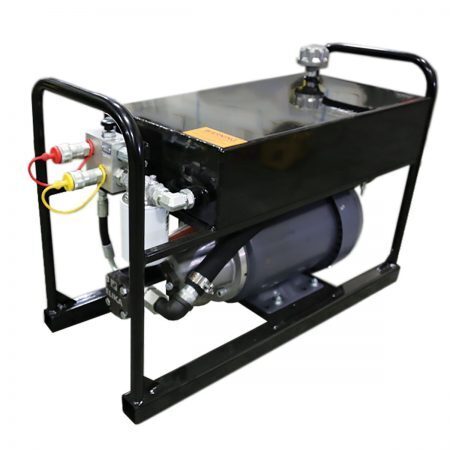

Electric Hydraulic Power Pack
The Electric Power Pack comes standard with a 3.7kW single phase 4 pole motor, in-line filter, gear pump delivering 28 litres/min. 45 litre tank with filter breather, manifold block with release valve set at 62 bar, and quick release couplings.
Manual Jacks
All Arrowquip hydraulic mobile cattle crushes are available with the option of manual jacks if preferred.

Find my local dealer

Contact Arrowquip

Thank you for your interest in Arrowquip! Fill out the short form below and someone from our team will contact you within one business day. In the meantime, you can also check out our FAQ section.

Q-Power 107 Series Hydraulic Mobile Crush and Race Specifications

3-Year Hydraulic Cattle Crush Warranty
Hydraulics are controlled from the pivoting swing arm: 3E Yoke Gate, 3E Rear Gate, Squeeze, Head Sweep (Optional)
Hydraulic squeeze ranges from 750mm fully open to 195mm fully closed
Improved wide-range pivoting swing arm has a larger range and allows you to operate the hydraulic controls anywhere along either side of the crush
New yoke gate design uses light to draw cattle into the crush
Curtain-style yoke gate opens to a full 762mm top to bottom for cattle to exit the crush
Poly-coated slam latches eliminate metal clanging
Two rows of rump fingers ensure safety no matter the size of the animal
Poly-composite rump fingers are engineered to endure high pressure
Vet door opens in both directions for a full 180° of manoeuvrability
Low-profile latch ensures the vet cage door will not swing to the inside of the crush when slammed shut
Swing-out top and bottom access doors can be used individually or together to access the entire animal
Side access panels are removable and can be configured in a variety of positions to suit your farms needs
324mm top to bottom needle door access
New drop-down needle bar allows for quick injections
Rectangular tubing limits cattle bruising
Pivot and latch points feature poly bushings for silent operation
True virgin rubber flooring dampens sound and provides great traction
Rubber floor is backed by a lifetime guarantee
Mount brackets enable you to add load bars or secure the crush to concrete
Cradle-shaped Easy Flow Race section ranges from 750mm to 457mm in width
Both side panels drop down fully, allowing the farmer to access the animal in case of emergency
Safety latches on the Easy Flow Race side panels add security and control when adjusting, and ensure the sides will not drop accidentally
Easy Flow Races come with removable panels so you can control what cattle see in the race
Single piece steel frame has been reinforced with new 51mm x 153mm beams that run the length of the unit
