Q-Power 107 Series Mobile Cattle Handling Hydraulic Crush, Race and Forcing Pen

Hydraulic portable cattle crush, race and forcing pen in a field

Complete Mobile Cattle Handling system designed for ease of use

4 models available:
3E BudFlow® [18' Race]| Forcing Pen [18' Race]| 3E BudFlow® [8' Race]| Forcing Pen [8' Race]

View model details below

Product Code: 10718

* Head Scoop Optional

Power. Portability. Productivity.

Arrowquip’s NEW Q-Power 107 Series Mobile Cattle Handling Hydraulic Crush, Race and Forcing Pen is up to any task you throw at it. Rapid response hydraulics are mounted on the improved pivoting control arm that gives you the freedom to operate your crush from any point on either side. For a truly silent and incredibly powerful cattle handling experience, look to the Q-Power 107 Series.

The impressive towing setup features a redesigned forcing pen that is shorter than before, making towing the unit easier than ever, even with the 18’ Race model. Our patent-pending 3E technology is used throughout the unit, and every component of this mobile cattle handling system is designed to improve the efficiency of your farm.

Get the equipment you need to do the job right, without compromise, with the Q-Power 107 Series Mobile Cattle Handling Hydraulic Crush, Race and Forcing Pen.

Get Your Q-Power 107 Series Mobile Cattle Handling Hydraulic Crush, Race and Forcing Pen Brochure

Choose your Q-Power 107 Series Mobile Cattle Handling Hydraulic Crush, Race and Forcing Pen model

  • Model: 3E BudFlow® [18' Race]

    Weight: 2950 - 2995 kg

    Dimensions: 4500mm Wide x 2670mm High x 13340mm Long (When set up.)

    Towing Dimensions: 1910mm Wide x 2925mm High x 11685mm Long (With wheels and hitch.)

  • Model: Forcing Pen [18' Race]

    Weight: 2790 - 2835 kg

    Dimensions: 2925mm Wide x 2670mm High x 13340mm Long (When set up.)

    Towing Dimensions: 1910mm Wide x 2925mm High x 11685mm Long (With wheels and hitch.)

  • Model: 3E BudFlow® [8' Race]

    Weight: 2530 - 2575 kg

    Dimensions: 4500mm Wide x 2670mm High x 10800mm Long (When set up.)

    Towing Dimensions: 1910mm Wide x 2925mm High x 8250mm Long (With wheels and hitch.)

  • Model: Forcing Pen [8' Race]

    Weight: 2370 - 2415 kg

    Dimensions: 2925mm Wide x 2670mm High x 10800mm Long (When set up.)

    Towing Dimensions: 1910mm Wide x 2925mm High x 8250mm Long (With wheels and hitch.)

Government TB Testing Regulations

As per the Government of UK website’s tuberculosis testing guidelines, your testing and handling facilities must:

Allow safe movement of cattle;
Include a suitable handling system (such as a crush and penning system linked by a secure race);
Make it easy for inspectors to restrain and examine cattle, clip their hair, measure the skin with calipers, and give them injections;
Be in good working order;
Be suitable for the size and breed of cattle that have to be tested; and
Be well-lit so inspectors can read ear tags and carry out the test.

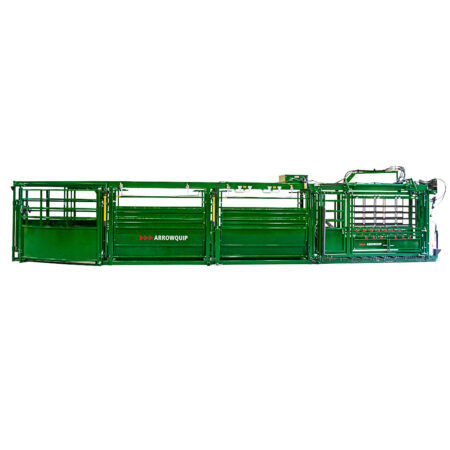

Looking at the side of the Mobile Cattle Crush, Race and Forcing Pen with 8 feet of race

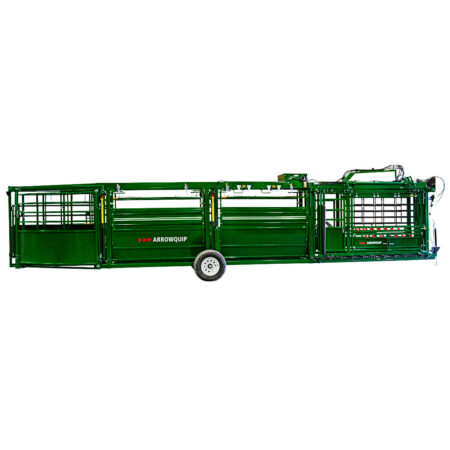

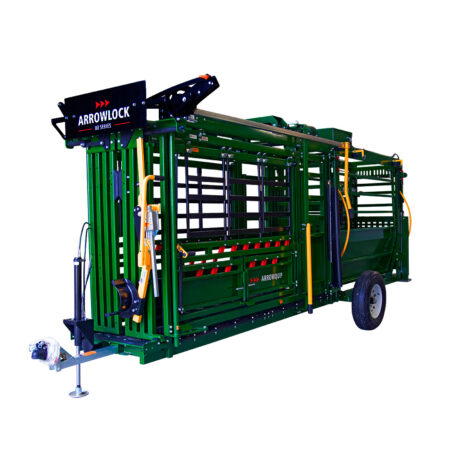

  • Engineered For Transport

    One of the key features of the new portable handling system is the towing. The frame has been enhanced for structural integrity, and now has 51mm x 153mm beams on the top, and 76mm x 76mm beams on the bottom. The entire unit folds up into a compact and secure package for travel, ensuring your equipment will get to your destination safely, and the electric jack system ensures setup when you get to your location only takes a matter of minutes. The completely redesigned collapsible forcing pen is one of the most brilliant points of engineering our team has come up with to date! This truly compact pen is folded in a way that shortens the unit by up to 1727mm when towing, making the new 18’ race portable unit the same length as the Q-Catch 86 Series Portable Cattle Crush, Race & Forcing Pen model was!

  • Designed for TB Testing

    The Q-Power 107 Series Mobile Cattle Handling Hydraulic Crush, Race and Forcing pen is an ideal solution for TB testing, as it provides proper access to the neck of the animal. The 324mm TB access area right at the front of the crush allows your vet or testing personnel can easily access the neck of your cattle to complete SICCT testing. This access to the neck is available on both sides of the crush, ensuring that you can complete testing quickly and effectively. Additionally, the Q-Power 107 Series provides a low-stress environment for your livestock, making it easier to handle your livestock regularly.

    For more information, visit our TB Testing page.

Request My Product Demo

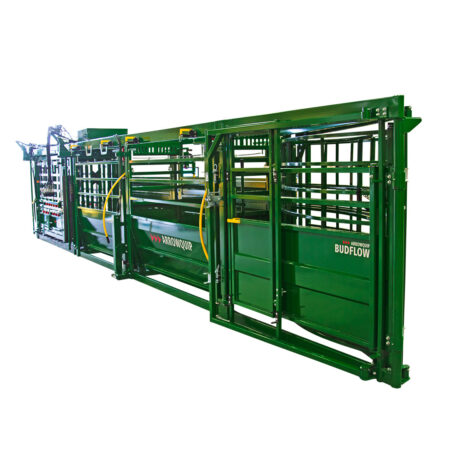

3E BudFlow® vs Crowding

The new 3E BudFlow® system is designed to enhance cattle flow through your system using light. Cattle are drawn to spaces they believe they can escape, and the 3E BudFlow forcing pen is works with this natural cattle behaviour. Cattle enter through the BudFlow gate and see light through the low sheeted panels, then turn back to where they came from once they reach the crowd gate at the back. Once the BudFlow gate is closed, cattle believe the race was their original entrance point, and will move into the race seamlessly.

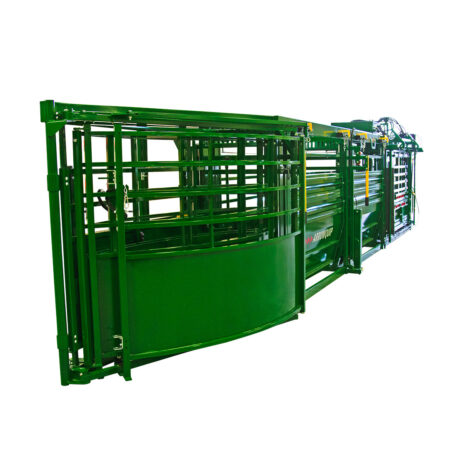

The 180° Forcing Pen provides effective cattle movement from the pen into the race. The panels feature flat sheeting and square bars to minimize bruising, and the sweep gate features a lock out to keep handlers safe when forcing cattle into the race.

More Forcing Pen Information

For more information, visit our TB Testing page.

Q-Power 107 Series hydraulic cattle crush from the side

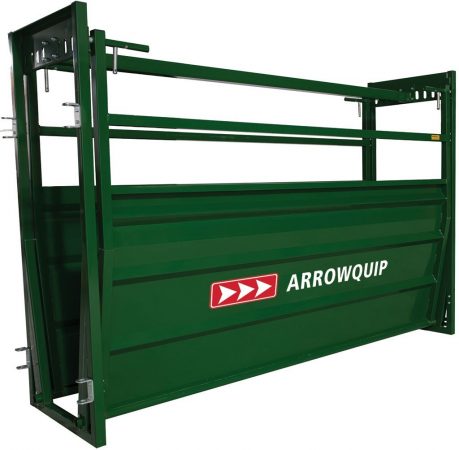

  • NEW 18' Easy Flow Race

    Make your mobile hydraulic cattle chute, race and forcing pen into a fully portable handling unit with the NEW 18’ Race model. The longer race provides enough space for you to move all cattle out of the pen and into the race, preventing the need for stop-and-go handling which can be a challenge with mobile cattle equipment.

    Each Easy Flow Race section includes two removable panels that can be moved into multiple positions to control what cattle see, in accordance with our patent-pending 3E technology. This helps to guide cattle in the right direction using light and point of balance handling techniques.

    Also available in an 8’ race model.

  • Q-Power 107 Series Cattle Crush

    The NEW Q-Power 107 Series hydraulic crush is at the head of this powerful system. The fast-touch hydraulic controls provide superior cattle control, while the 3E components draw cattle through the system using light. This portable hydraulic crush enables handlers to complete their tasks in record time, leaving more time for the things that truly matter.

Request My Price

Options

  • hydraulic head sweep on 3e yoke gate

    Hydraulic Head Sweep

    This simple, gentle, and effective option can be connected to the hydraulics on your cattle crush to hold the animal’s head in place with ease.

  • Yellow cattle head scoop in closed position

    Third-Generation Cattle Head Scoop [Patented]

    For reliable cattle control, the Third Generation Q-Catch Cattle Head Scoop is the tool you need. Featuring a new heavy-duty frame, the 3rd Gen is stronger and more durable than ever before. The patented single handle push-pull operation makes it easy to use, as there are no locks to release. For procedures that require up-close access to cattle’s head, the head scoop is an essential addition to any operation.

    [ More Information ]
  • Brisket Bar

    Brisket Bar

    If your cattle are prone to high-stress, or you are often performing stressful procedures, a Brisket Bar is an easy and effective way to keep your livestock upright in the chute. The Brisket Bar supports the sternum to prevent cattle from laying down. For ease of use, it can be installed and removed from the chute quickly with just two bolts.

    [ More Information ]
  • Clipping rail for Arrowquip cattle crushes

    Clipping Rail

    If you need to open both side doors for special procedures such as hoof trimming, adding a clipping rail will ensure that you and your livestock stay safe. It can be adjusted to accommodate cattle of varying sizes, and is easily installed with just four bolts.

  • cattle weighing scale platform

    Scale Platform

    The Scale Platform is designed for the 8’ Easy Flow Race Section of your portable handling system. The side panels can be lifted and held in place with the slam latches, enabling the platform to be slid into place. The heavy-duty 6.35mm aluminium plates feature raised sides to ensure cattle will not slip off, and enable you to quickly weigh your cattle as they move through the alley.

  • weighing scale mount plates by Arrowquip

    Scale Mount Plates

    Scale Mount Plates designed to support 23" load bars when using the Arrowquip Scale Platform. Designed to work with Gallagher and Tru-Test load bars.

  • Hydraulic Cattle Cattle Crush Electric Power Pack | Arrowquip Cattle Equipment

    Electric Hydraulic Power Pack

    The Electric Power Pack comes standard with a 3.7kW single phase 4 pole motor, in-line filter, gear pump delivering 28 litres/min. 45 litre tank with filter breather, manifold block with release valve set at 62 bar, and quick release couplings.

  • Portable manuals jacks

    Manual Jacks

    All Arrowquip mobile hydraulic crushes are available with the option of manual jacks if preferred.

Find my nearest dealer

Contact Arrowquip

Thank you for your interest in Arrowquip! Fill out the short form below and someone from our team will contact you within one business day. In the meantime, you can also check out our FAQ section.

Q-Power 107 Series Mobile Cattle Handling Hydraulic Crush, Race and Forcing Pen Specifications

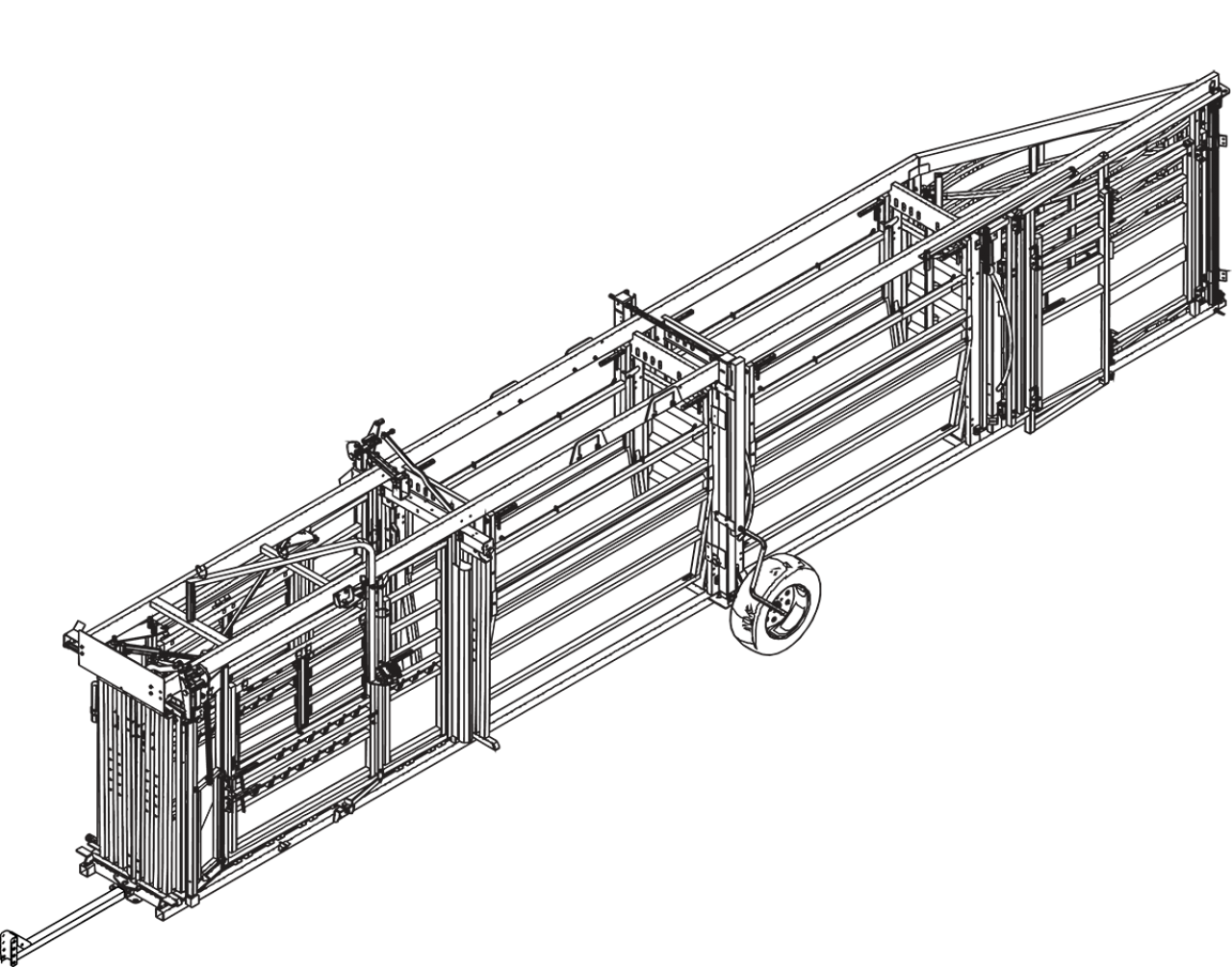

CAD drawing of the mobile cattle handling hydraulic crush race and forcing pen
  • 3-Year Hydraulic Cattle Crush Warranty
  • Hydraulics are controlled from the pivoting swing arm: 3E Yoke Gate, 3E Rear Gate, Squeeze, Head Sweep (Optional)
  • Hydraulic squeeze ranges from 750mm fully open to 195mm fully closed
  • Improved wide-range pivoting swing arm has a larger range and allows you to operate the hydraulic controls anywhere along either side of the crush
  • New yoke gate design uses light to draw cattle into the crush
  • Curtain-style yoke gate opens to a full 762mm top to bottom for cattle to exit the crush
  • Poly-coated slam latches eliminate metal clanging
  • Two rows of rump fingers ensure safety no matter the size of the animal
  • Poly-composite rump fingers are engineered to endure high pressure
  • Vet door opens in both directions for a full 180° of manoeuvrability
  • Low-profile latch ensures the vet cage door will not swing to the inside of the crush when slammed shut
  • Swing-out top and bottom access doors can be used individually or together to access the entire animal
  • Side access panels are removable and can be configured in a variety of positions to suit your farms needs
  • 324mm top to bottom needle door access
  • New drop-down needle bar allows for quick injections
  • Rectangular tubing limits cattle bruising
  • Pivot and latch points feature poly bushings for silent operation
  • True virgin rubber flooring dampens sound and provides great traction
  • Rubber floor is backed by a lifetime guarantee
  • Mount brackets enable you to add load bars or secure the crush to concrete
  • Cradle-shaped Easy Flow Race section ranges from 750mm to 457mm in width
  • Both side panels drop down fully, allowing the farmer to access the animal in case of emergency
  • Safety latches on the Easy Flow Race side panels add security and control when adjusting, and ensure the sides will not drop accidentally
  • Easy Flow Races come with removable panels so you can control what cattle see in the race
  • Single piece steel frame has been reinforced with new 51mm x 153mm beams that run the length of the unit
  • The forcing pen folds in on itself so that it is compact for transport
  • Forcing pen measures just 1176mm wide when panels are folded in
