Q-Catch 74 Series Mobile Manual Squeeze Crush, Race and Forcing Pen

Q-Catch 74 Series mobile squeeze crush, race and forcing pen

The Most Compact Mobile Manual Squeeze Crush, Race and Forcing Pen Ever

5 Read Reviews

Product Code: 7408
Product Features | Product Specifications

Weight: 1890 kg

Dimensions: 2340mm Wide x 2410mm High x 10241mm Long (When set up.)

5 Options Available

Get my Quote from Arrowquip

The Q-Catch 74 Series Mobile Manual Squeeze Crush, Race and Forcing Pen is a full working system built for efficient cattle handling in any pasture. Featuring the Q-Catch 74 Series cattle crush, an 8’ Easy Flow adjustable cattle race section, and an 8’ forcing pen, this mobile cattle handling system provides you with all that you need to get the job done anywhere, anytime.

The enhanced frame and improved portability are key items that make the Q-Catch 74 Series stand apart from the competition. With an adjustable hitch, two manual jacks, and an improved collapsible forcing pen design, setting up this mobile handling system can be done in just five minutes.

Who says you have to compromise features for portability? With the Q-Catch 74 Series Mobile Manual Squeeze Crush, Race and Forcing Pen, you can have it all and get the work done faster, so you can get back to what truly matters.

Get My Q-Catch 74 Series Mobile Manual Squeeze Crush, Race and Forcing Pen Brochure

Fill out this form to receive your Q-Catch 74 Series Mobile Manual Squeeze Crush, Race and Forcing Pen brochure:

[ To get a closer look, click on image below ]

  • Mobile squeeze crush, race and forcing pen World's most compact mobile handling system ever made.
  • Mobile squeeze crush, race and forcing pen Towing your handling system has never been so easy.

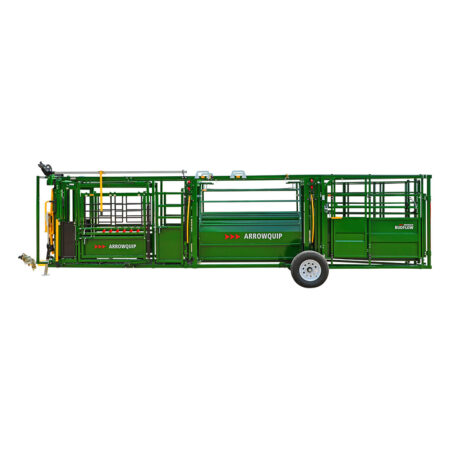

  • Full side of mobile squeeze crush, race and forcing pen Measures only 8992mm when towing
  • Mobile squeeze crush, race and forcing pen being set up Goes from towing to ready to work in just six minutes.
  • Mobile squeeze crush, race and forcing pen from above Versatility and ease of use in one package

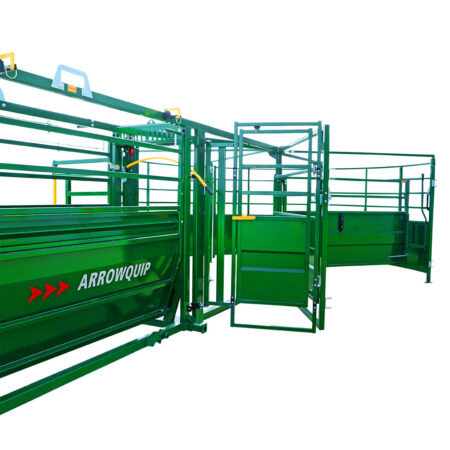

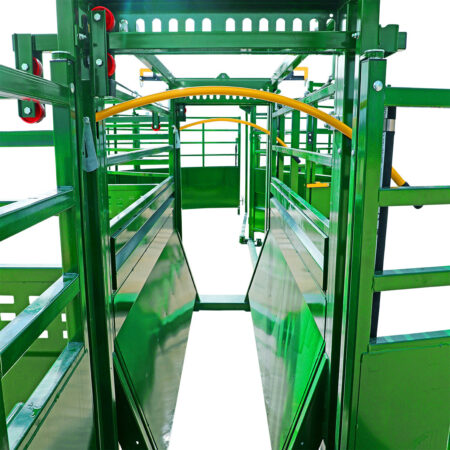

  • Mobile cattle handling system view from forcing pen to yoke gate Cattle see light from the back of the pen all the way past the crush.
  • Mobile cattle handling system race squeezed all the way down Easy Flow Cattle Race squeezes down to 457mm

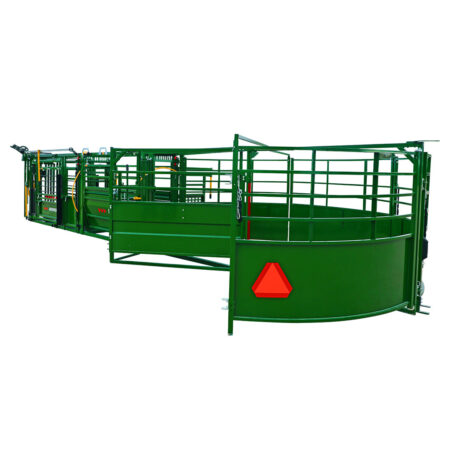

  • Mobile cattle handling system forcing pen unfolded from the back The mobile system quickly unfolds to include a 8' Cattle Forcing Pen
  • Mobile handling system secured for transport The tub straps down securely for transport

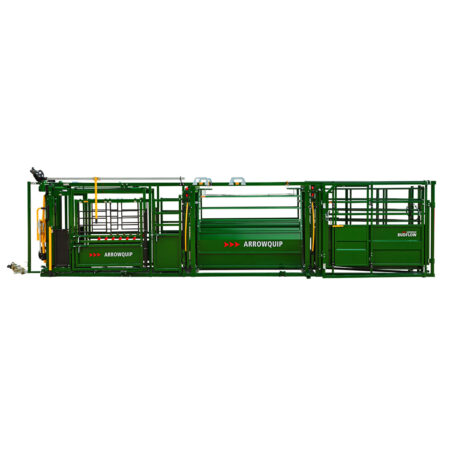

  • Mobile cattle handling system fully set up, side view 10262mm long when working cattle.

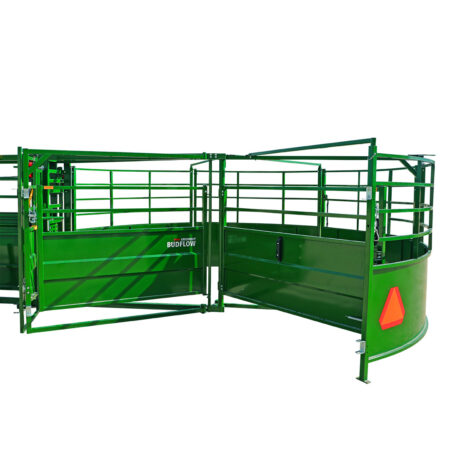

  • Cattle forcing pen on mobile handling system The patented design eliminates tripping hazards in the forcing pen

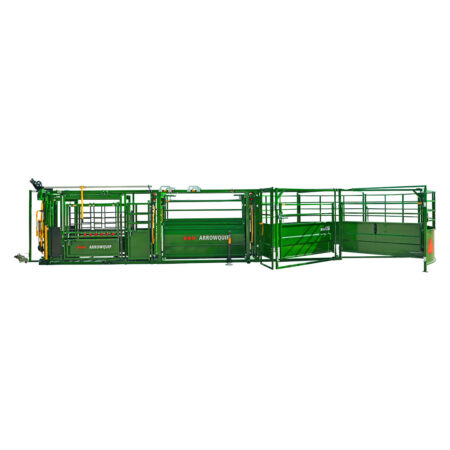

  • Side view of the mobile cattle handling system fully set up Complete the Easy Flow Cattle race, this is versatility at its best.
  • Mobile cattle handling system from above Cattle flow easily from the cattle pen through to the squeeze crush
  • Rear of the mobile handling system Rear view of mobile handling system set up for use
  • Mobile cattle handling system from above This is the easiest way to upgrade your farm
  • mobile cattle handling system all set up from above The 8' forcing pen keeps cattle moving through the system.
  • cattle race rope adjustment Your able to adjust both side of the race from just one side.

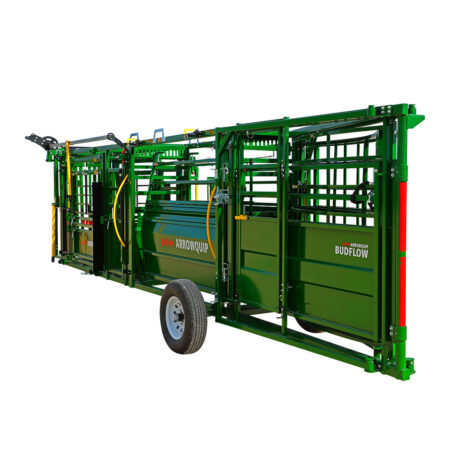

  • Mobile cattle handling system in towing position from rear You'll never tow another cattle handling system as easy as this one.
  • Mobile cattle handling system fully set up from front Our forcing pen, race, and 3E yoke gate guarantee consistent cattle flow.
  • Portable cattle handling system fully set up from front Measures 2438mm wide when set up
  • Action shot of forcing pen panels being unfolded The patented design make this mobile handling system the industries easiest to manage
  • rear of mobile cattle handling system with forcing pen folded for transport 8' collapsible forcing pen folds in to be just 3' wide.
  • Forcing pen folded together on a mobile cattle handling system Our patented chassis and folding forcing pen keeps things easy.
  • mobile cattle handling system fully set up Working cattle in a mobile system is safe, and efficient.
  • mobile cattle handling working system fully set up from above Mobile cattle handling system on a farm
  • calf in squeeze crush for cattle No matter the size of the cattle, there is no adjustment needed.
  • mobile cattle handling system with bull inside squeeze crush Can easily handle you biggest and baddest bulls as well.
  • farmer operating the Q-Catch yoke gate handle Comes complete with our world renowned Q-Catch Yoke Gate.
  • farmer using squeeze on brown cow The Q-Catch squeeze ranges from 750mm to 51mm to manage cows of any size
  • drop down cattle race emergency gate If needed, the Easy Flow cattle race comes complete with a drop down emergency gate.
  • farmer using squeeze on mobile cattle handling system The mobile system that doesn't ask you to compromise....anything.

Product Features

  • cattle walking into a squeeze crush

    3E Q-Catch Cattle Yoke Gate [PATENT-PENDING]

    The new 3E Q-Catch Cattle Yoke Gate features a new look that allows cattle to see light through the yoke gate even when closed. This new design works with cattle psychology to show a way out past the cattle yoke gate using a unique barred style, encouraging cattle to enter the squeeze crush with ease.

  • mobile cattle handling system fully set up

    Complete Cattle Handling System

    From pen to crush, this mobile cattle handling system is designed to equip you with all that you need to work cattle anywhere. Moving livestock into the system is easy with the 8’ forcing pen, while the 8’ Easy Flow adjustable cattle race is cradle-shaped to keep livestock from turning around. With the Q-Catch 74 Series crush at the front of the unit, you gain complete control and access to the entire animal.

  • Mobile squeeze crush, race and forcing pen from above

    Portable System Frame [PATENT-PENDING]

    The Arrowquip R&D Team has spent hundreds of hours enhancing the portable system frame to make it as easy to transport and set up as possible. Featuring a new chassis that allows the 8’ forcing pen to fold in on itself, this mobile cattle handling system is only 29.5’ long (from the hitch to the end of the pen) and 6.75’ wide (from wheel to wheel) when towed. Additionally, the redesigned system frame eliminates tripping hazards in the cattle forcing pen.

  • mobile squeeze crush folded for towing

    Transportation

    For even easier transportation, the Q-Catch 74 Series mobile handling system comes with an improved adjustable hitch including an added gusset for additional support. When setting up for working or towing, the two wheels are easily installed or removed with two pins, while the bracket can be adjusted to work with your tractor.

See what Others Have to Say
Want more information?

Contact Arrowquip

Product Specifications

  • 7-Year Squeeze Crush Warranty, longest in the industry
  • New yoke gate design uses light to draw cattle into the squeeze crush
  • Q-Catch yoke gate operation handle can be situated anywhere along the side of the crush
  • Curtain-style yoke gate opens to a full 762mm top to bottom for cattle to exit the crush
  • Easy to use push-pull squeeze crush handle
  • Squeeze ranges from 750mm fully open to 195mm fully closed
  • The Q-Catch squeeze locking system features a dual friction lock with infinite adjustments
  • New Direct Drive system provides faster head gate response
  • Rump fingers ensure safety no matter the size of the animal
  • Poly-composite rump fingers are engineered to endure high pressure
  • Ambidextrous rolling door that can be operated from either side of the crush and is reversible
  • The rolling door running track is top-mounted, eliminating the issue of build-up
  • Vet door opens in both directions for a full 180° of manoeuvrability (Deluxe Vet only)
  • Low-profile latch ensures the vet cage door will not swing to the inside of the crush when slammed shut (Deluxe Vet only)
  • Swing-out top and bottom access doors can be used individually or together to access the entire animal
  • Side access panels are removable and can be configured in a variety of positions to suit your needs
  • 12.75” top to bottom needle door access
  • New drop-down needle bar allows for quick injections
  • Rectangular tubing limits cattle bruising
  • Pivot and latch points feature poly bushings for silent operation
  • Metal stamped ribbed floor provides great traction for animals
  • Mount brackets enable you to add load bars or secure the crush to concrete
  • Yoke gate locking pin adds safety when transporting the crush or completing maintenance

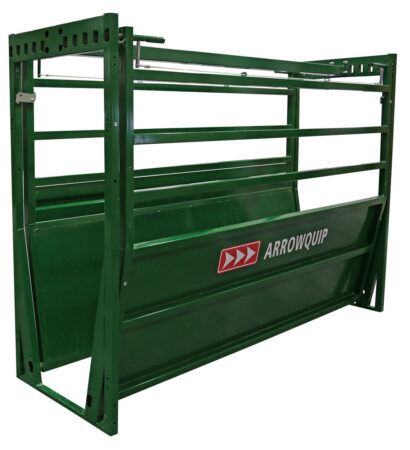

  • Both sides of the Easy Flow Race can be adjusted from one side
  • Cradle-shaped Easy Flow Race section ranges from 750mm to 457mm in width
  • Both side panels drop down fully, allowing the handler to access the animal in case of emergency
  • Easy Flow races come with removable panels so you can control what cattle see
  • Safety latches on the Easy Flow Race side panels add security and control when adjusting, ensuring the sides will not drop accidentally
  • The forcing pen folds in on itself so that it is compact for transport
  • Forcing pen measures just 3' wide when panels are folded in
  • Single piece steel frame has been reinforced with 51mm x 76mm beams that run the length of the unit

Download my Q-Catch 74 Series Mobile Manual Squeeze Crush, Race and Forcing Pen Manual

Misplaced your manual? Download another one now

Available Add-Ons / Options

  • Yellow cattle head scoop in closed position

    Third-Generation Cattle Head Scoop [Patented]

    The NEW 3rd Gen Q-Catch Cattle Head Scoop is the safest option for any procedure that requires access to the animal’s head. The head scoop clamps down around the neck, keeping the head immobile to perform necessary tasks. Featuring a patented single handle push-pull operation and no secondary lock, the head scoop is known throughout the industry to be a game-changer in cattle control.

    [ More Information on the Third-Generation Cattle Head Scoop [Patented] ]
  • Cattle brisket bar - sheeted

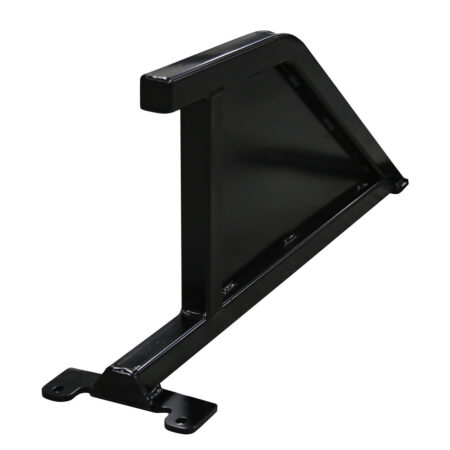

    Brisket Bar

    The Brisket Bar prevents cattle from laying down in the crush, preventing delays that can be caused by downed cattle. The new model is sheeted to eliminate hoof traps and can be installed or removed with just two bolts.

    [ More Information on the Brisket Bar ]
  • Clipping rail for Arrowquip cattle crushes

    Clipping Rail

    The Clipping Rail is designed to keep cattle contained when it is necessary to open the entire side of the crush, specifically for trimming. It can be adjusted into different positions to work with cattle of varying sizes, and is easily installed or removed with just two bolts.

  • cattle weighing scale platform

    Scale Platform

    The Scale Platform is custom designed for the 8’ Adjustable Easy Flow Race section of the portable handling system. For easy installation, the side panels can be lifted and held in place with the slam latches, allowing the operator to slide the Scale Platform underneath. These heavy-duty, 6.4mm aluminium plates feature raised sides ensure cattle will not slip off, and allow you to quickly and effectively weigh your cattle as they move through the handling system.

  • weighing scale mount plates by Arrowquip

    Scale Mount Plates

    Scale Mount Plates designed to support 584.2mm raceway load bars when using the Arrowquip Scale Platform. Designed to work with Gallagher and Tru-Test load bars.
