Q-Power 104 Series Hydraulic Squeeze Crush

5 Read Reviews

The Easiest Way to Upgrade your Farm

Product Code: 1040
Product Specifications:

2 models available:
Deluxe Vet| Standard

5 Options Available

Get my Quote from Arrowquip

[ To get a closer look, click on image below ]

The Q-Power 104 Series Deluxe Vet comes with the vet cage attached.
Or choose our standard version that is only minus the vet cage.
Access the controls quickly and easily from the side of the crush.
Top mounted motor keeps things compact for easy transport.
Our standard version is the best economical hydraulic solution available in the market today.
Less moving parts, means longevity. You can rely on the Q-Power 104 Series.
The patented 3E yoke gate guarantees improved flow, using light to draw the cattle into the crush.

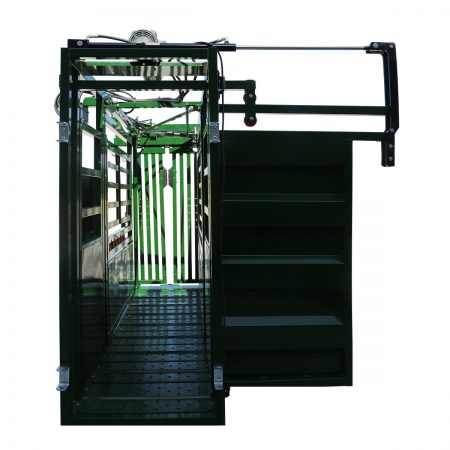

Complete with the industries only hydraulic rolling rear gate
When combined with our 3E yoke gate, cattle will naturally flow into the chute when you open the rolling rear gate.
No matter the size of the animal, the Q-Power will be able to handle the job.

Product Information

Read Full Video Transcript

Q-Power 104 Series Hydraulic Squeeze Crush Video Transcript

At Arrowquip, we believe in innovative design and engineering, while taking care of the rancher and the ranch. Introducing the NEW Q-Power 104 Series Hydraulic Squeeze Chute, the easiest way to upgrade your ranch. This hydraulic chute comes standard with a 110 Volt hydraulic pump for the extra push to get more done, even when you’re working alone. With research-driven design, the Q-Power 104 Series has all the practical features you need in a squeeze chute. Starting with the NEW Q-Power hydraulic head gate with our 3E Easy Entry and Exit System. Designed for improved flow, cattle enter the chute easily by seeing light through the head gate even when closed, increasing flow and efficiency. Combine that with Arrowquip’s FIRST ever hydraulic rolling door, and you can manage your flow of cattle safely and easily. All hydraulic controls are mounted on the rear-end of the chute and include a hydraulic squeeze that goes from 29.5 inches down to 7.75 inches, allowing you to work all sizes of cattle without making any adjustments. The Q-Power 104 Series provides you with access like you’ve never seen before. Maintain control while getting access to either side of the animal with split access doors and removable inspection gates on both sides of the chute. Each access door is designed with an anti-swing cam slam latch that allows for quick access while preventing the door from swinging through. The redesigned needle access door with the NEW drop-down needle bar lets you vaccinate your cattle in seconds. And for added safety, the NEW 400 Series offers chin bar and sternum bar options to keep your cattle upright while performing treatments. The Q-Power 104 Series comes with a built-in vet cage at the rear, as well as a row of high-quality composite rump fingers to further secure the animal in the chute. With the NEW wheel kit add on, you can easily convert your cattle chute into a portable unit, and mount brackets on the bottom bars make the Q-Power 104 ready for scales. With Arrowquip, you’re guaranteed maximum efficiency, resulting in higher profits, and more time to do the things that truly matter to you and your family. This is innovative cattle handling like never before, and is a new global standard in the cattle equipment industry. This is the new Q-Power 104 Series Hydraulic Squeeze Chute. The bar has been set.

Hide Transcript Text

Hydraulic squeeze crushes are known for their ability to increase productivity while reducing handler fatigue. While most hydraulic crushes on the market come with high price tags that only those with large herds can afford, they are no longer the only option. When good hired help is hard to find, farmers need more accessible options to boost their productivity and get the job done right.

For farmers who need extra help, the NEW Q-Power 104 Series Hydraulic Squeeze Crush is the only farm hand you will ever need. Complete with the same structure and access features as the Q-Catch 74 Series, this hydraulic squeeze crush is the perfect combination of practicality and power.

Government TB Testing Regulations

As per the Government of UK website’s tuberculosis testing guidelines, your testing and handling facilities must:

Allow safe movement of cattle;	✓
Include a suitable handling system (such as a crush and penning system linked by a secure race);	✓
Make it easy for inspectors to restrain and examine cattle, clip their hair, measure the skin with calipers, and give them injections;	✓
Be in good working order;	✓
Be suitable for the size and breed of cattle that have to be tested; and	✓
Be well-lit so inspectors can read ear tags and carry out the test.	✓

Product Features

3E Q-Power Yoke Gate
With a design that works with cattle psychology, the NEW 3E Q-Power Cattle Yoke Gate makes it even easier for cattle to enter the crush. Even when the gate is closed, the new design uses light to draw cattle into the crush, greatly improving flow.
Longest Hydraulic Warranty ever Offered
With the NEW Q-Power 104 Series, there are no what-ifs. Our hydraulic squeeze crushes come with a 3 YEAR No Bull warranty - the longest ever offered in the industry! Additionally, the poly composite rump fingers are also backed with a lifetime guarantee.
Practical Handling with a Hydraulic Boost
The Q-Power 104 Series gives you the extra boost you need to get more done even when you are working solo. Our 400 Series line of squeeze crushes give you practical cattle handling without compromising safety, quality, and efficiency.
Continued Superior Access
With the NEW needle door, top and bottom side access doors, removable access panels, and a full-size vet cage, the Q-Power 104 Series hydraulic squeeze crush gives you all the access you need to work your cattle. This hydraulic crush gives you a total of 18 access points to choose from.

A Hydraulic Squeeze Crush Designed for TB Testing

The Q-Power 104 Series hydraulic squeeze crush is designed for proper TB testing, with 324mm of access to the neck. This TB access area features a removable panel that provides better access than any other crush on the market, and can be used to complete SICCT testing with ease. Using the Q-Power 107 Series for your TB testing ensures your livestock with remain at low stress levels, making the tuberculosis testing process easier on you, your livestock, and your testing personnel.

For more information, visit our TB Testing page.

See what Others Have to Say
Want more information?

Get Your Brochure Contact Arrowquip

Product Specifications

3-year hydraulic squeeze crush warranty
New yoke gate design uses light to draw cattle into the squeeze crush
Hydraulic 3E yoke gate and squeeze functions
Curtain-style yoke gate opens to a full 762mm top to bottom for cattle to exit the crush
Arrowquip's first ever hydraulic rolling rear gate
Squeeze ranges from 750mm fully open to 195mm fully closed
Comes standard with an electric power pack
Rump fingers ensure safety no matter the size of the animal
Poly-composite rump fingers are engineered to endure high pressure
Ambidextrous rolling rear gate that can be operated from either side of the crush and is reversible
The rolling rear gate running track is top-mounted, eliminating the issue of build-up
Vet door opens in both directions for a full 180° of manoeuvrability
Low-profile latch ensures the vet cage door will not swing to the inside of the crush when slammed shut
Swing-out top and bottom access doors can be used individually or together to access the entire animal
Side access panels are removable and can be configured in a variety of positions to suit your needs
12.75” top to bottom needle door access
New drop-down bar allows for quick injections
Rectangular tubing limits cattle bruising
Pivot and latch points feature poly bushings for silent operation
Metal-stamped floor provides great traction
Mount brackets enable you to add load bars or secure the crush to concrete
Yoke gate locking pin adds safety when transporting the crush or completing maintenance

Misplaced your manual? Download another one now

CAD drawing of a Q-Power 104 Hydraulic Cattle Crush

Available Models

Model: Deluxe Vet
Weight: 860 kg
Dimensions: 1475mm Wide x 2420mm High x 3430mm Long
If you're looking for all of the features offered in our 74 Series with an extra power boost, the Q-Power 104 Series Deluxe Vet is for you. This crush has our ONLY hydraulically powered rolling rear gate, a full-length vet cage at the back, and the capability to handle cattle of any size. With all of these features at an accessible price point, the Q-Power 104 Series Deluxe Vet can't be beat.
Model: Standard
Weight: 730 kg
Dimensions: 1475mm Wide x 2420mm High x 2670mm Long
Don't need the vet cage? No problem! The Q-Power 104 Series Standard hydraulic squeeze crush is just what you need. Including many of the impressive features seen on the Deluxe Vet model, such as the hydraulically operated rear door and impressive access points, the Standard Model is up to the task.

Available Add-Ons / Options

Hydraulic Head Sweep
This simple, gentle, and effective option can be connected to the hydraulics on your cattle crush to hold the animal’s head in place with ease.
Third-Generation Cattle Head Scoop [Patented]
The third generation of the Q-Catch Head Scoop is heavier, stronger, and more durable. The cattle head scoop clamps around the cattle’s neck to hold the head immobile, allowing the farmer safe, up-close access. Featuring a patented single handle push-pull operation, the cattle head scoop simplifies any procedure necessary.
Chin Bar
The new chin bar is a basic head restraint that keeps the animal's head still to give you better access and control. This simplified version of our famous head scoop shares the same locking mechanism for infinite adjustments.
Brisket Bar
To keep cattle from going down in the crush, the Brisket Bar supports the sternum which helps keep your animal upright. The new Brisket Bar comes sheeted to eliminate hoof traps and can be installed with only two bolts.
Clipping Rail
The Clipping Rail can be easily installed or removed from the crush with just 4 bolts. You can adjust the clipping rail across the side of the crush to your desired position.
