Mobile Cattle Handling Race and Forcing Pen
Mobile Cattle Handling Race and Forcing Pen
2 models available:
3E BudFlow®| Forcing Pen
Product Code: PTA-L
Arrowquip’s Mobile Cattle Handling Race and Forcing Pen has been upgraded to provide you with more capacity and features to make working cattle simpler, no matter where you are. Featuring the NEW enhanced frame found in all Arrowquip mobile models, the 16’ diameter collapsible forcing pen folds in half, giving you a compact mobile handling system that is safe and easy to tow. With an adjustable hitch, thick structural beams, and a new single-point jacking system, setting up and taking down this portable unit can be done in under 5 minutes, saving you time and making your life easier.
Get Your Mobile Cattle Handling Race and Forcing Pen BrochureChoose your Mobile Cattle Handling Race and Forcing Pen model
Model: 3E BudFlow®
Weight: 2005 kg
Dimensions: 4500mm Wide x 2165mm High x 10040mm Long (When set up.)
Towing Dimensions: 1910mm Wide x 2415mm High x 8520mm Long (With wheels and hitch.)
The new 3E BudFlow® system allows cattle to see more light, which enhances flow through your handling system. The 3E BudFlow forcing pen is designed to work with natural cattle behaviour by providing them with extra space to prevent stops and encourage cattle to move into the race seamlessly.
Model: Forcing Pen
Weight: 1845 kg
Dimensions: 2925mm Wide x 2165mm High x 10040mm Long (When set up.)
Towing Dimensions: 1910mm Wide x 2415mm High x 8520mm Long (With wheels and hitch.)
The 180° Forcing Pen provides effective cattle movement from the pen into the race. The sweep gate features a lock out to keep it from moving back towards the handler when forcing cattle into the race.
New 3E System [PATENT-PENDING]
The new 3E BudFlow® system allows cattle to see more light, and gives them the impression they are escaping rather than entering an enclosed space. The new 3E System greatly improves cattle entry into the pen, and prevents hold-ups as they go to enter the race. With the BudFlow pen upgrade, you also add functionality to your system by being able to connect other components to the 3E door.
Easy Flow Cattle Races
The new and improved Easy Flow Adjustable Cattle Races now come with two removable panels that can be placed in multiple positions to control what cattle see, and how they move through your handling system. The Easy Flow Races narrow down to the centre and are cradle-shaped to ensure that your cattle keep moving forward and prevent turning.
Designed to Move
The new portable has an improved hitch that features an added gusset for support, the wheels are easily installed with two pins, and a bracket can be adjusted into three different positions to work with your tractor.
Most Compact Towing Package Ever
The new Mobile Cattle Handling Race & Forcing Pen has been upgraded with our most compact towing package ever. Measuring just under 8' long, the system is easier than ever to tow.
-
![mobile cattle forcing pen and race from the front]()
-
![mobile cattle forcing pen and race on wheels]()
-
![mobile cattle forcing pen and race side view]()
-

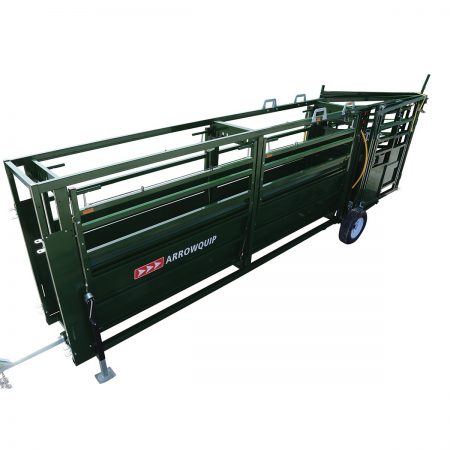

![mobile cattle forcing pen and race from above ready for use]()
-
![mobile cattle forcing pen and race from above ready for transport]()
-
![3E BudFlow Cattle forcing pen]()
-
![mobile cattle forcing pen and race on ground from side]()
-
![Low sheeted panels on the BudFlow Cattle forcing pen]()
-
![inside a cattle forcing pen]()
-
![Portable scale platform install slide]()
-
![View from cattle forcing pen down cattle race]()
Contact Arrowquip
Thank you for your interest in Arrowquip! Fill out the short form below and someone from our team will contact you within one business day. In the meantime, you can also check out our FAQ section.
Mobile Cattle Handling Race and Forcing Pen Specifications
- Cradle-shaped Easy Flow Race section ranges from 750mm to 457mm in width
- Both side panels drop down fully, allowing the farmer to access the animal in case of emergency

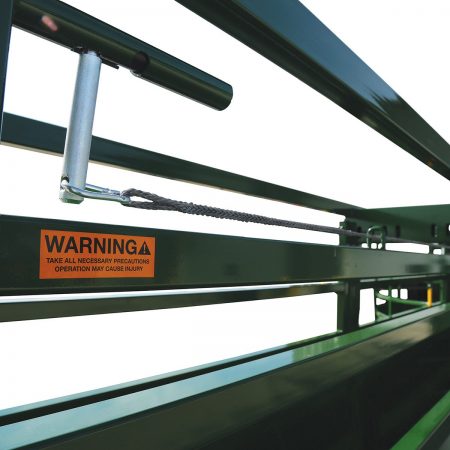

- Safety latches on the Easy Flow Race side panels add security and control when adjusting, and ensure the sides will not drop accidentally
- Easy Flow Races come with removable panels so you can control what cattle see in the race
- Single piece steel frame has been reinforced with new 51mm x 153mm beams that run the length of the unit

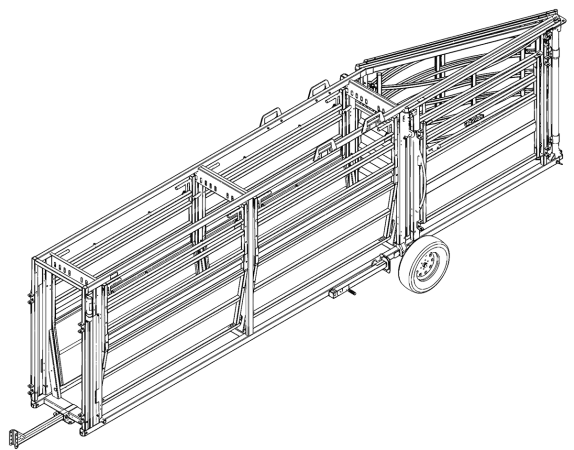

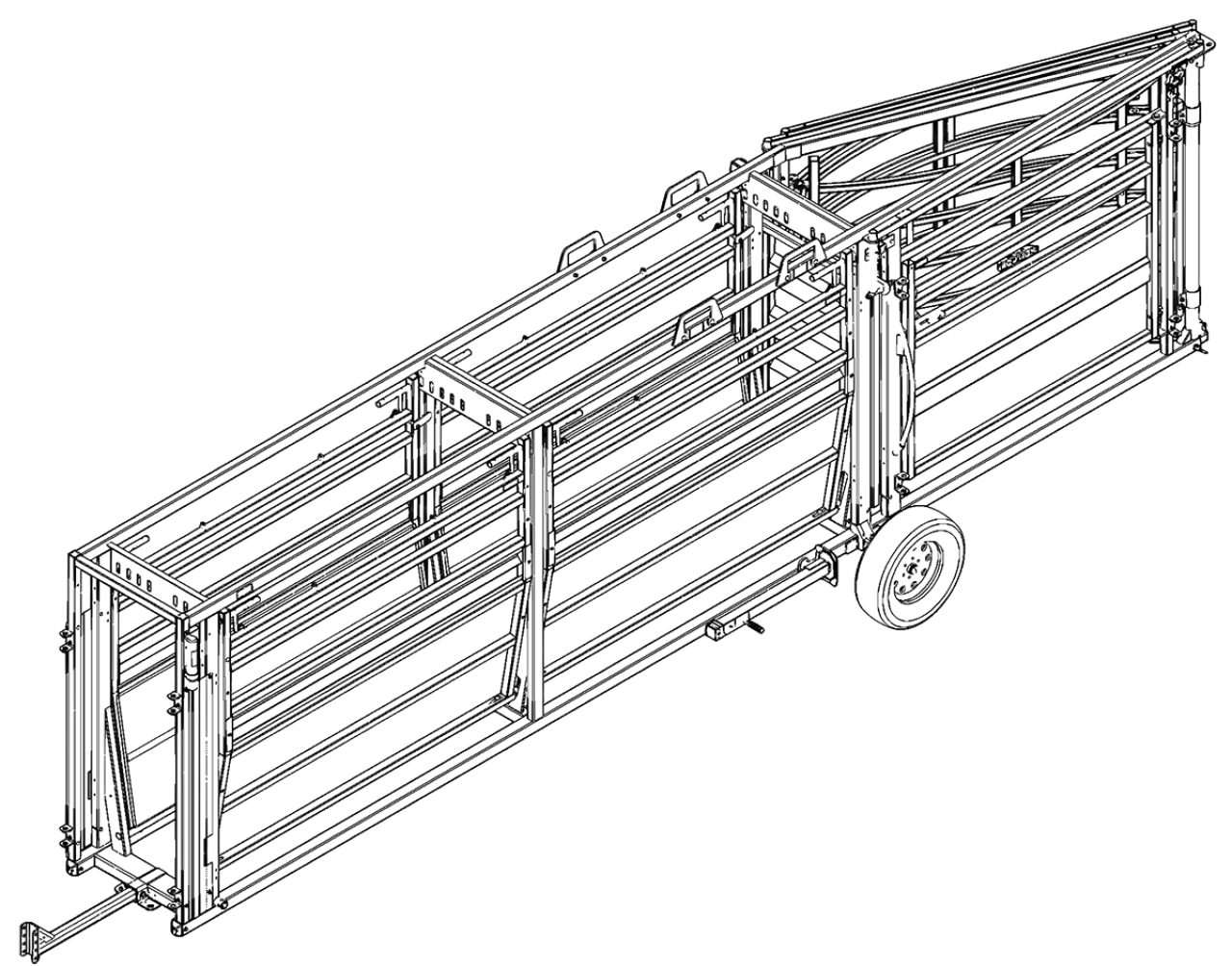

- The forcing pen folds in on itself so that it is compact for transport
- Forcing pen measures just 1176mm wide when panels are folded in
- Easy Flow races come with removable panels so you can control what cattle see in the race
- Single piece steel frame has been reinforced with new 51mm x 153mm beams that run the length of the unit
Download my Mobile Cattle Handling Race and Forcing Pen Manual
